Victron Inverter/Chargers
Victron Inverter/Chargers in Annapolis

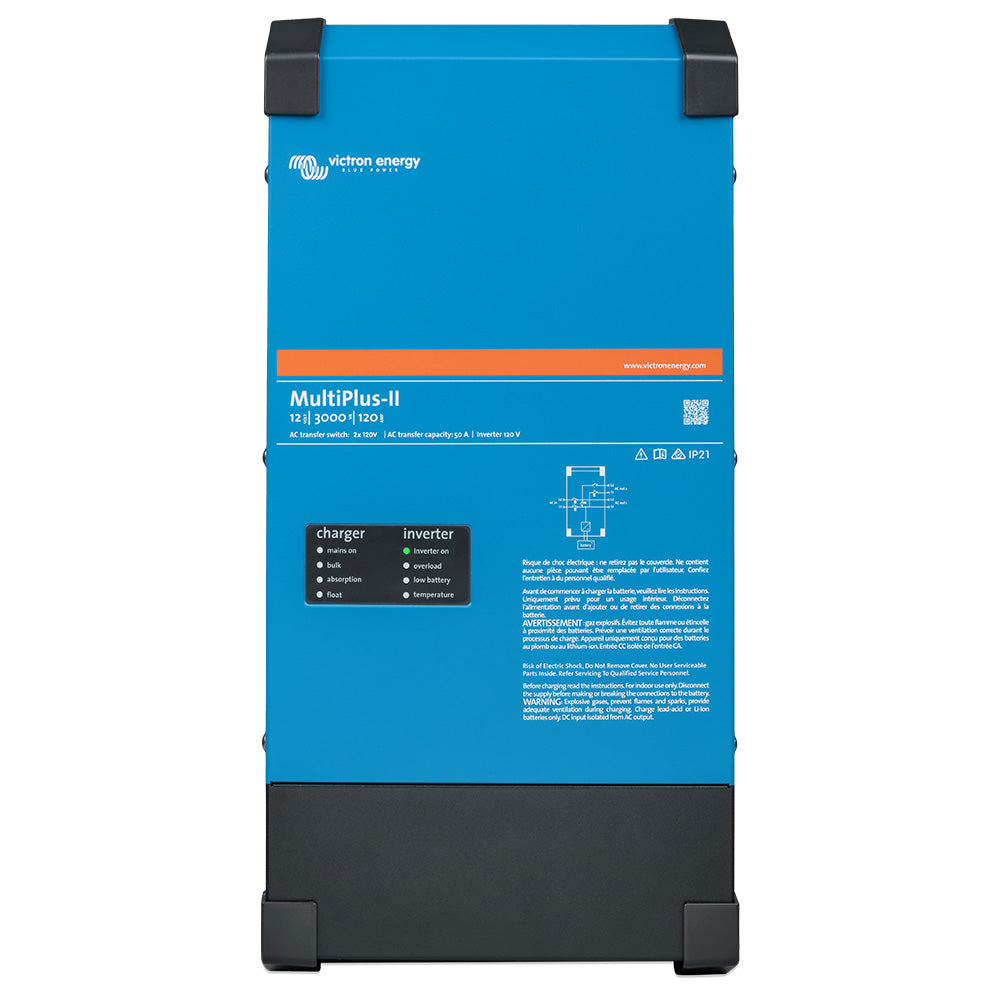

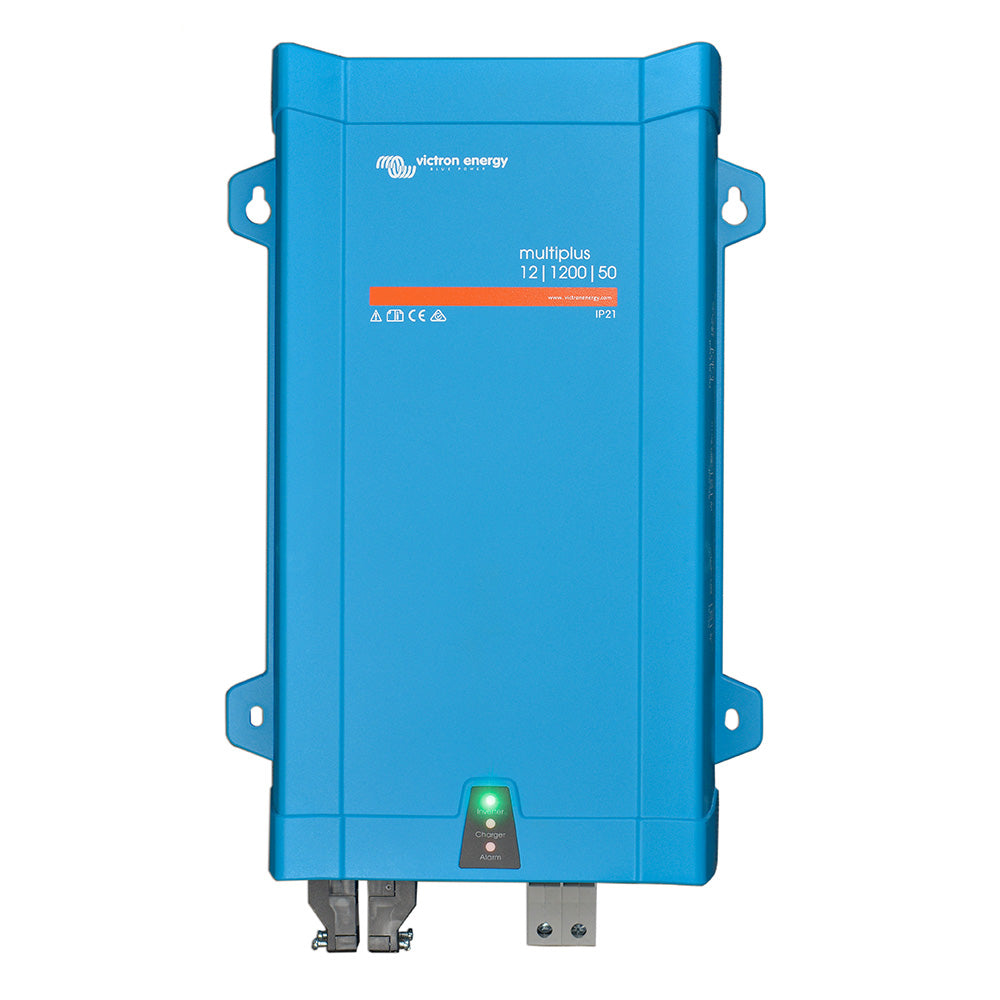

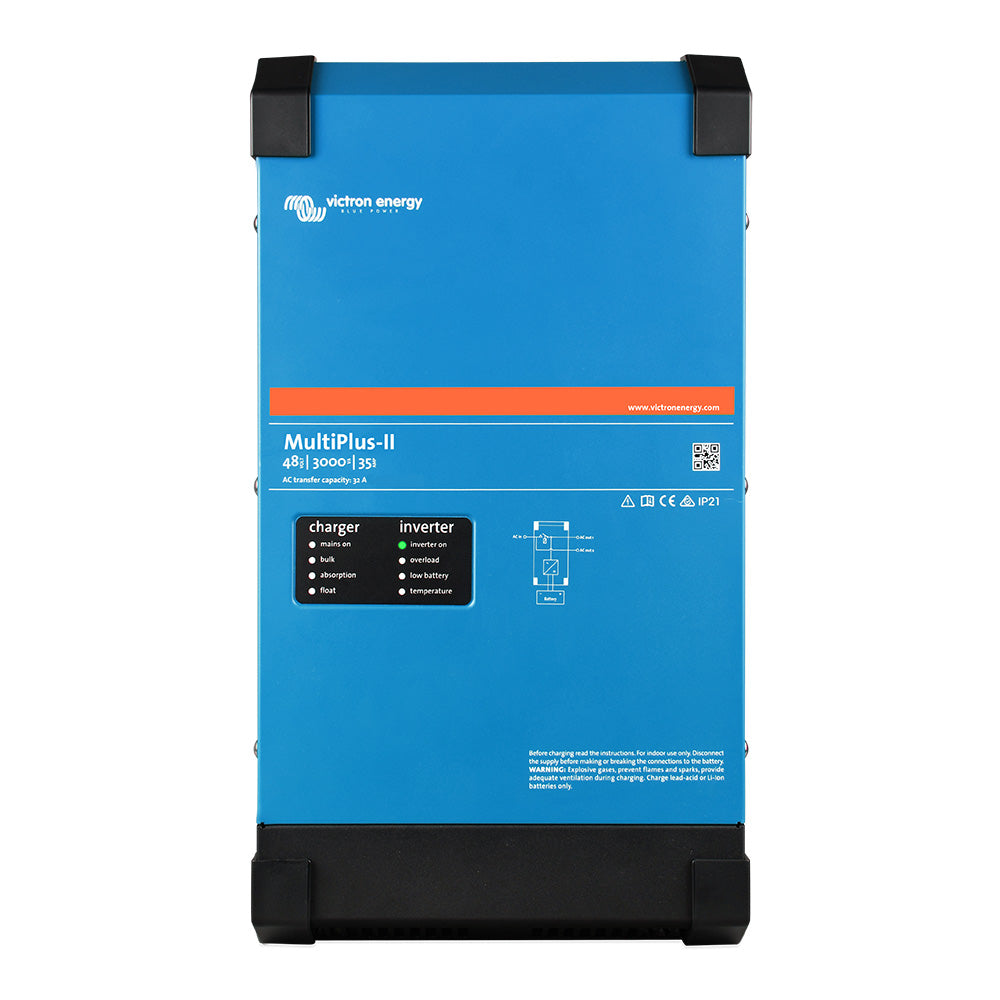

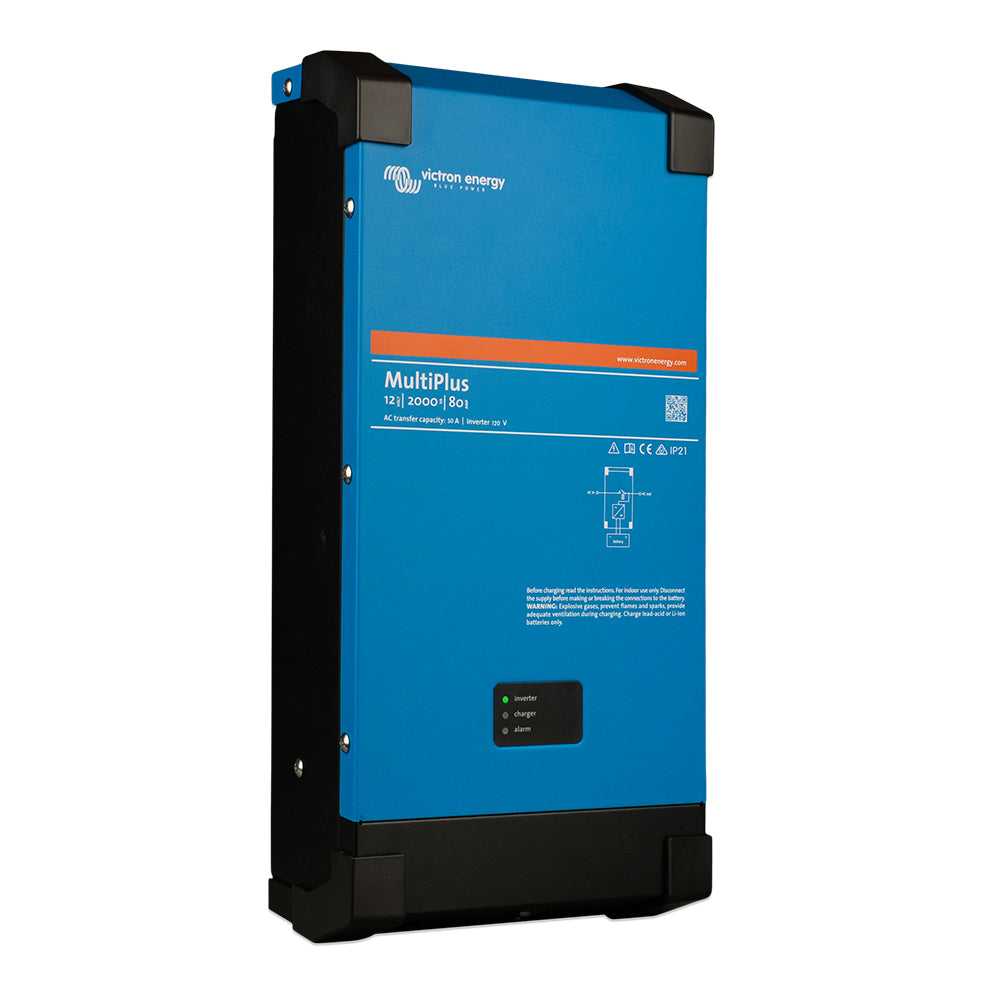

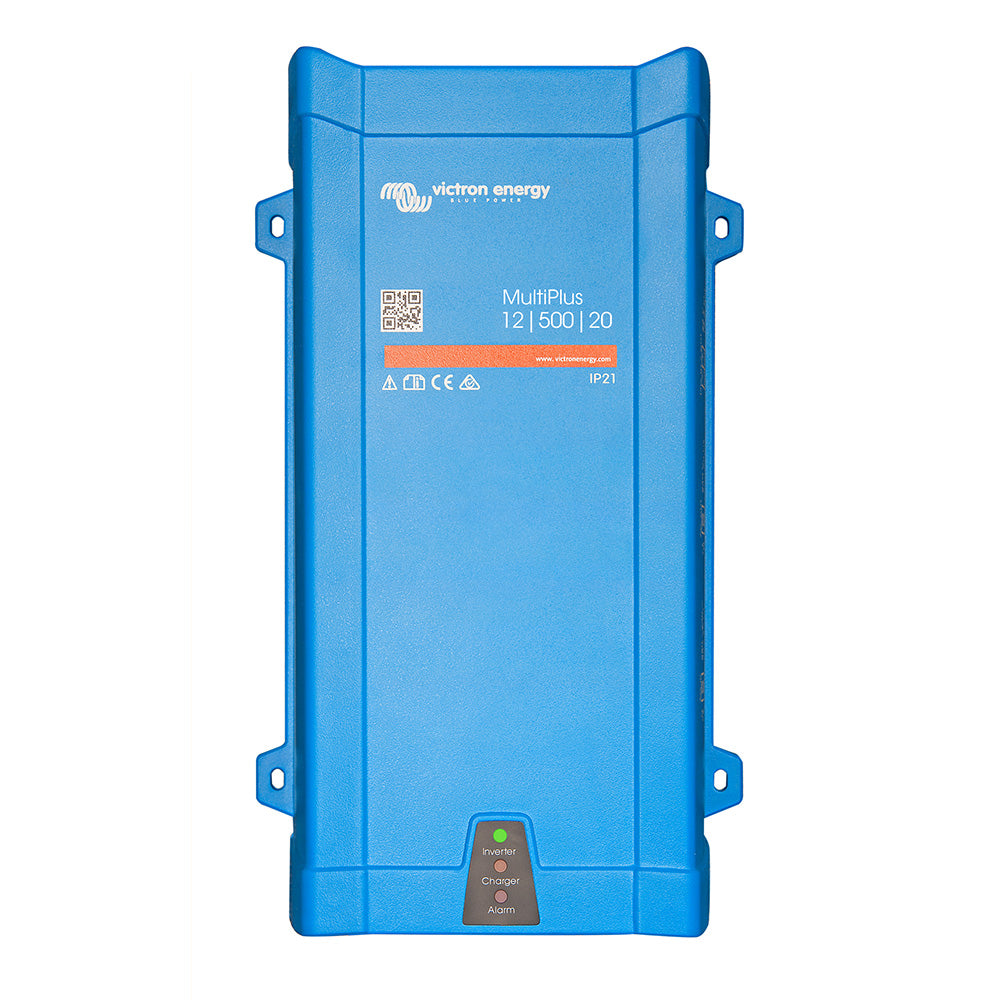

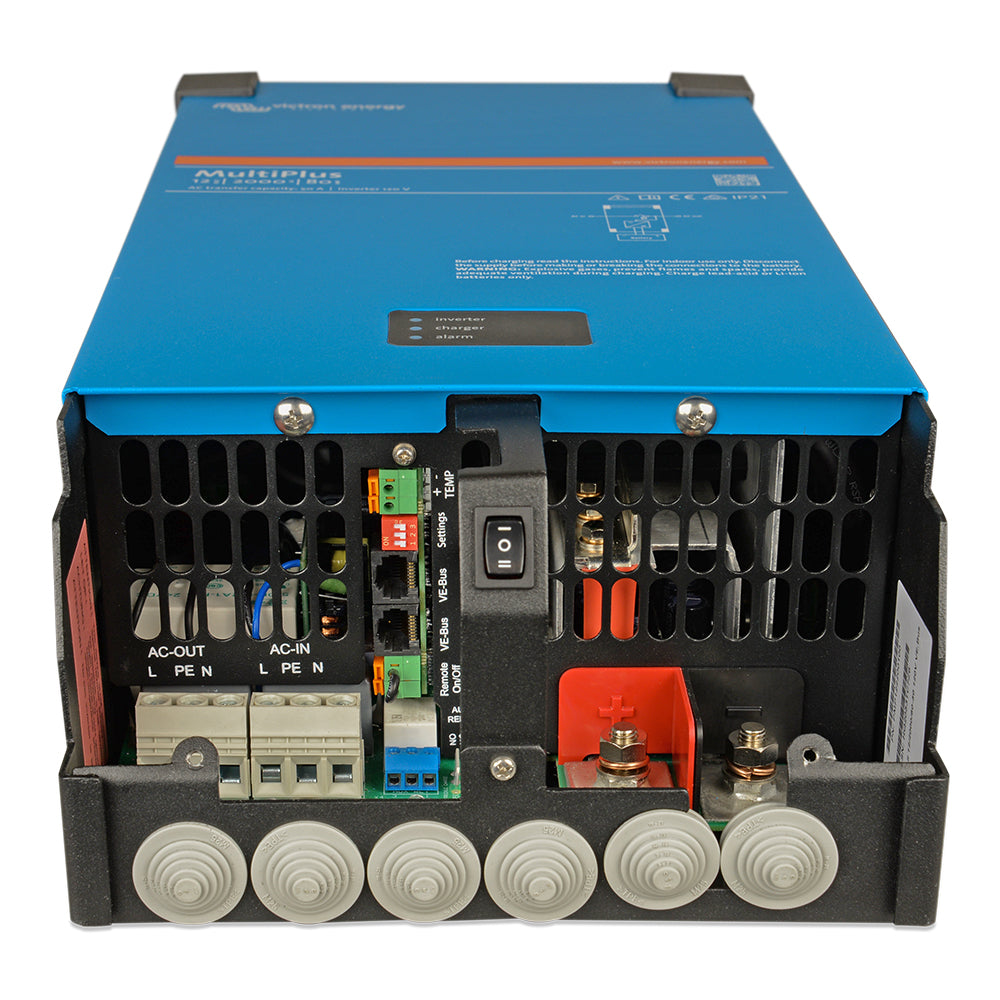

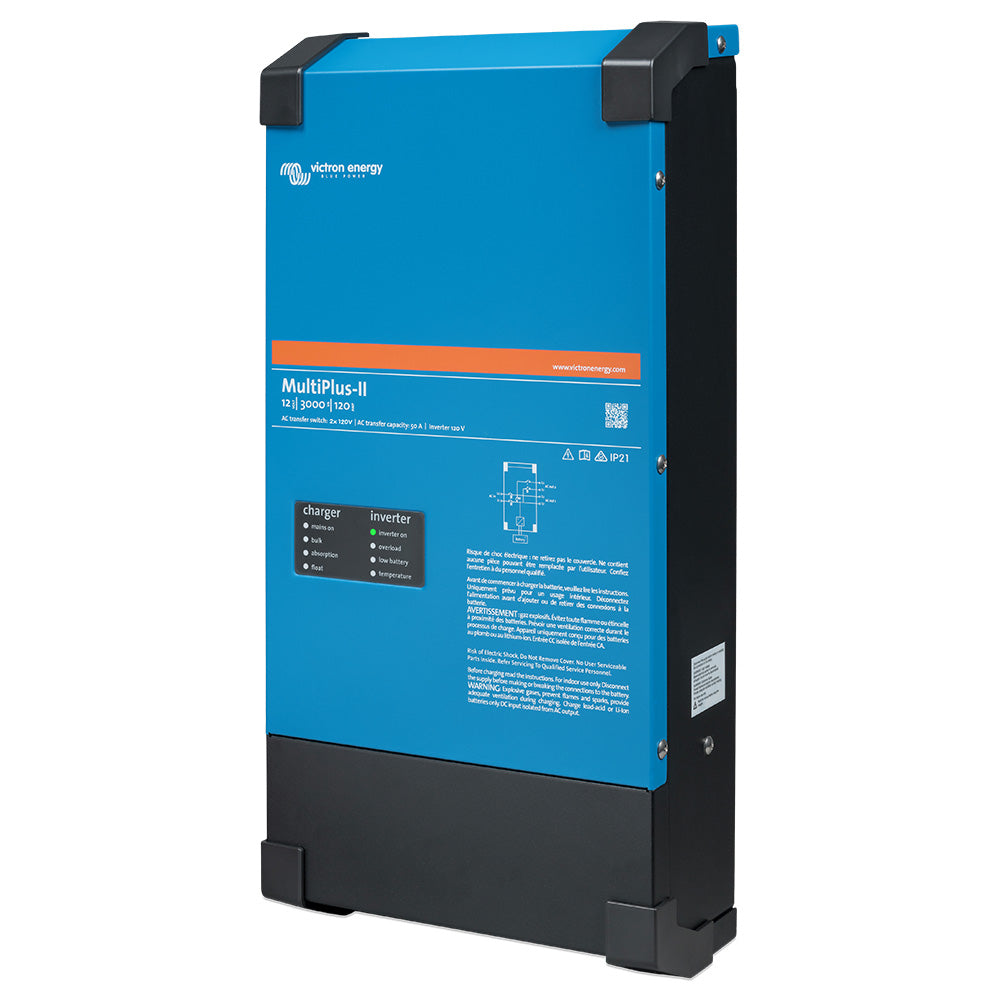

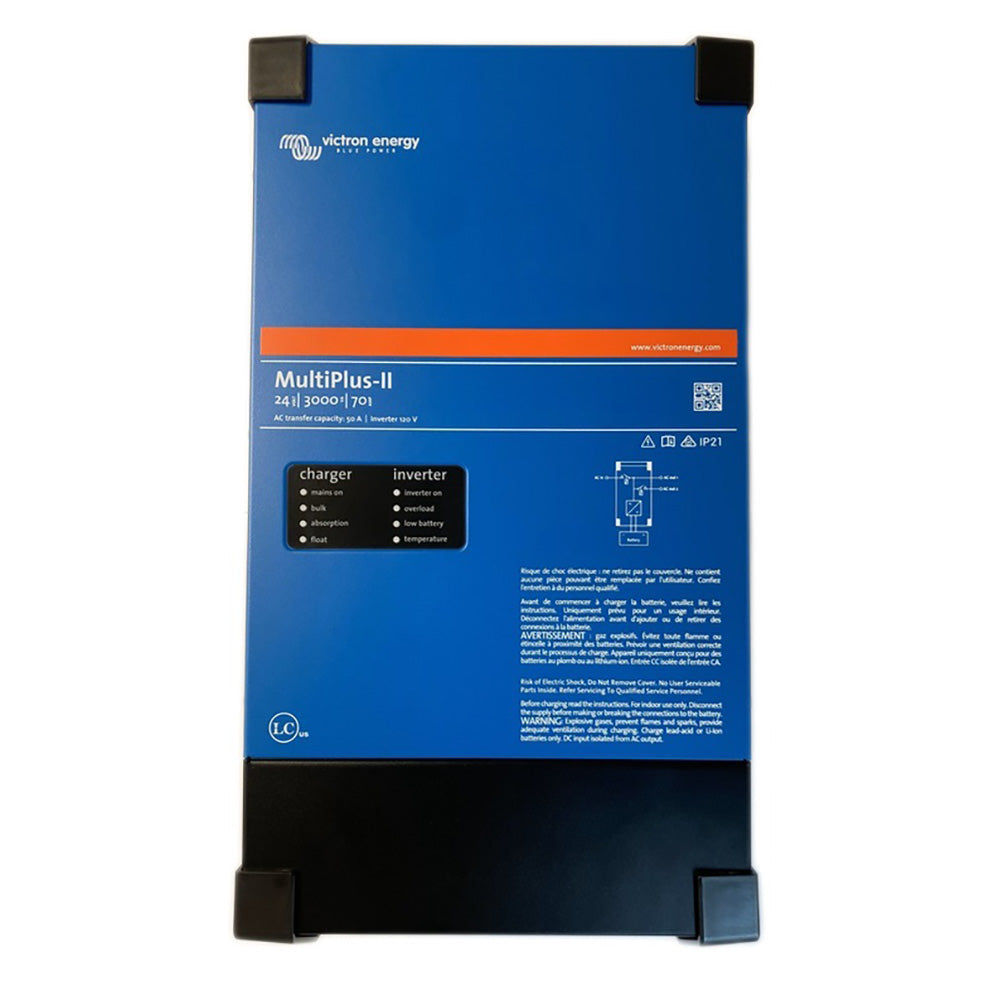

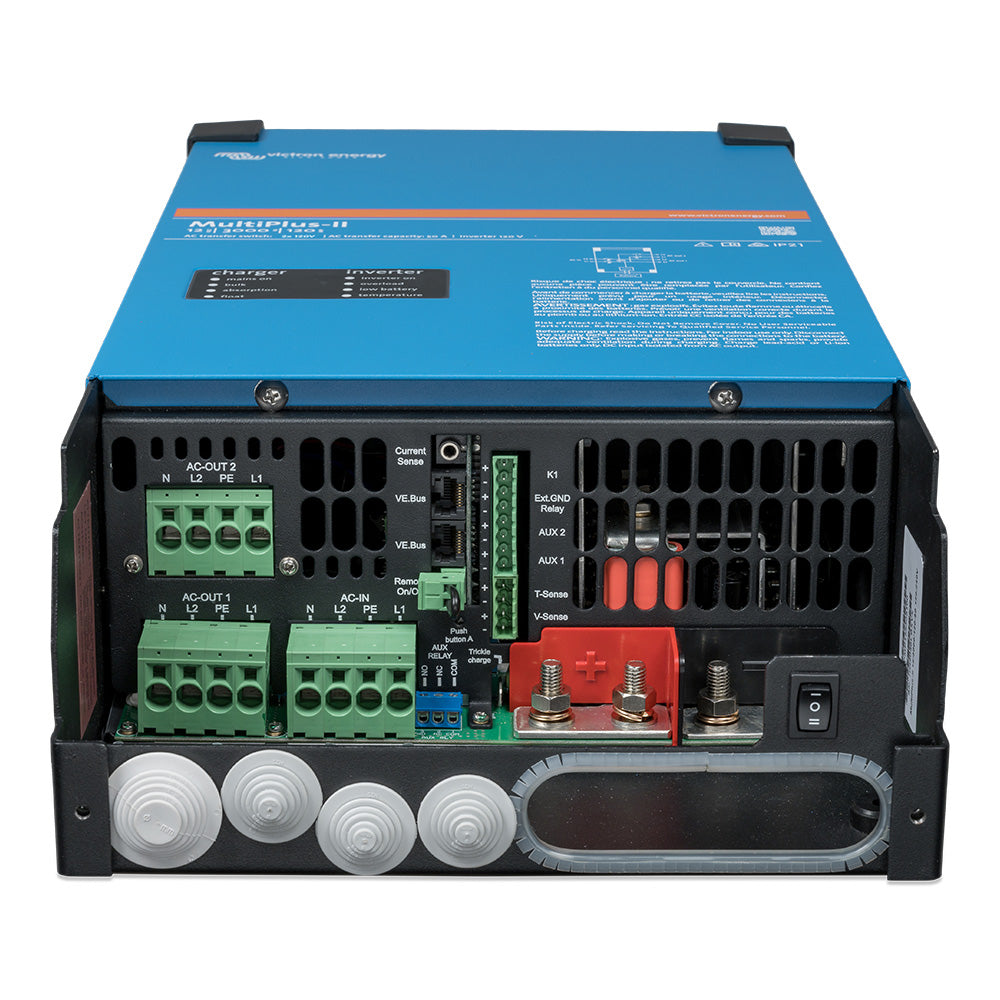

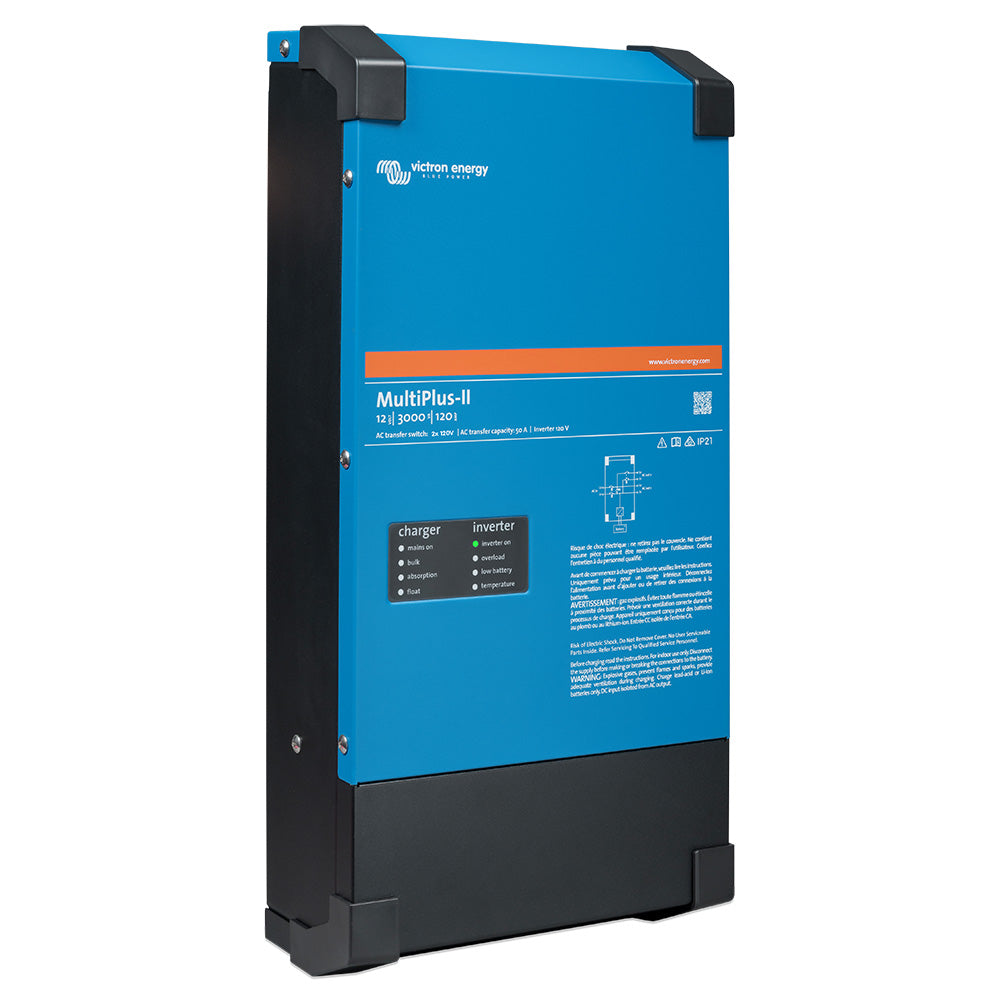

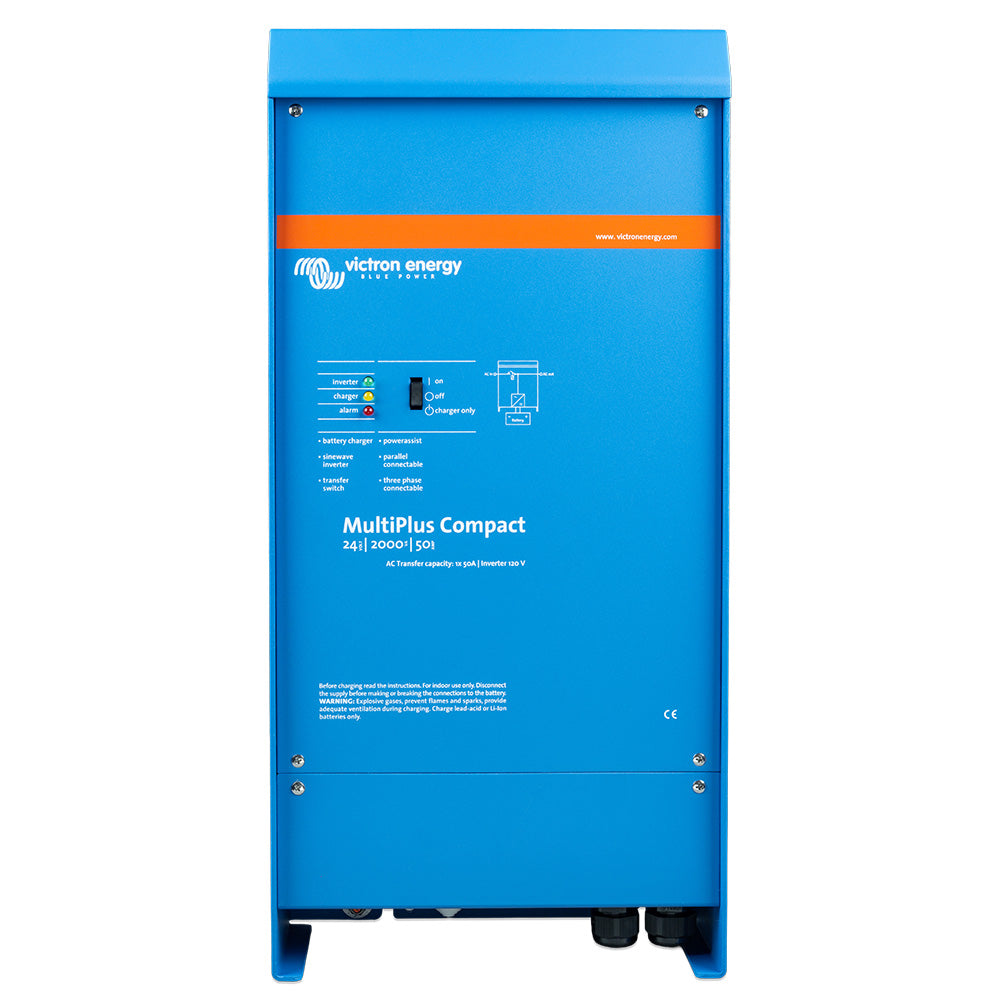

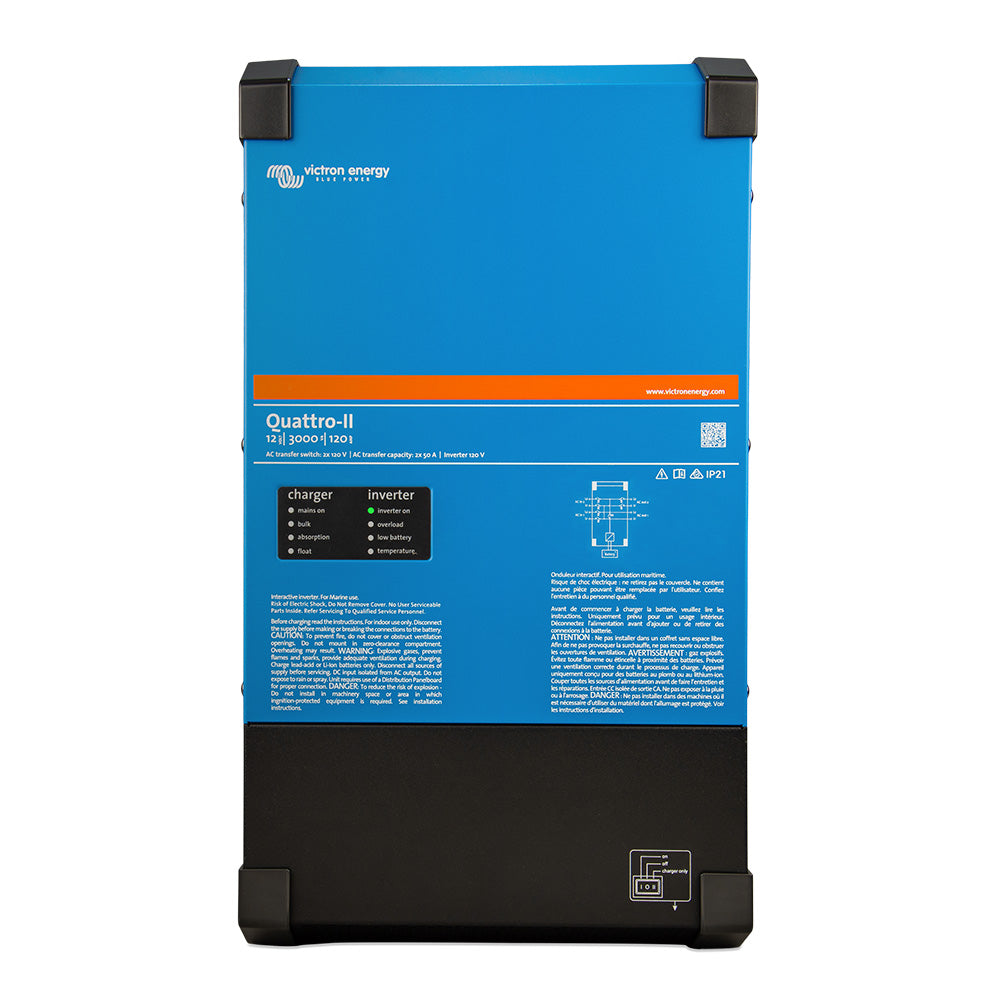

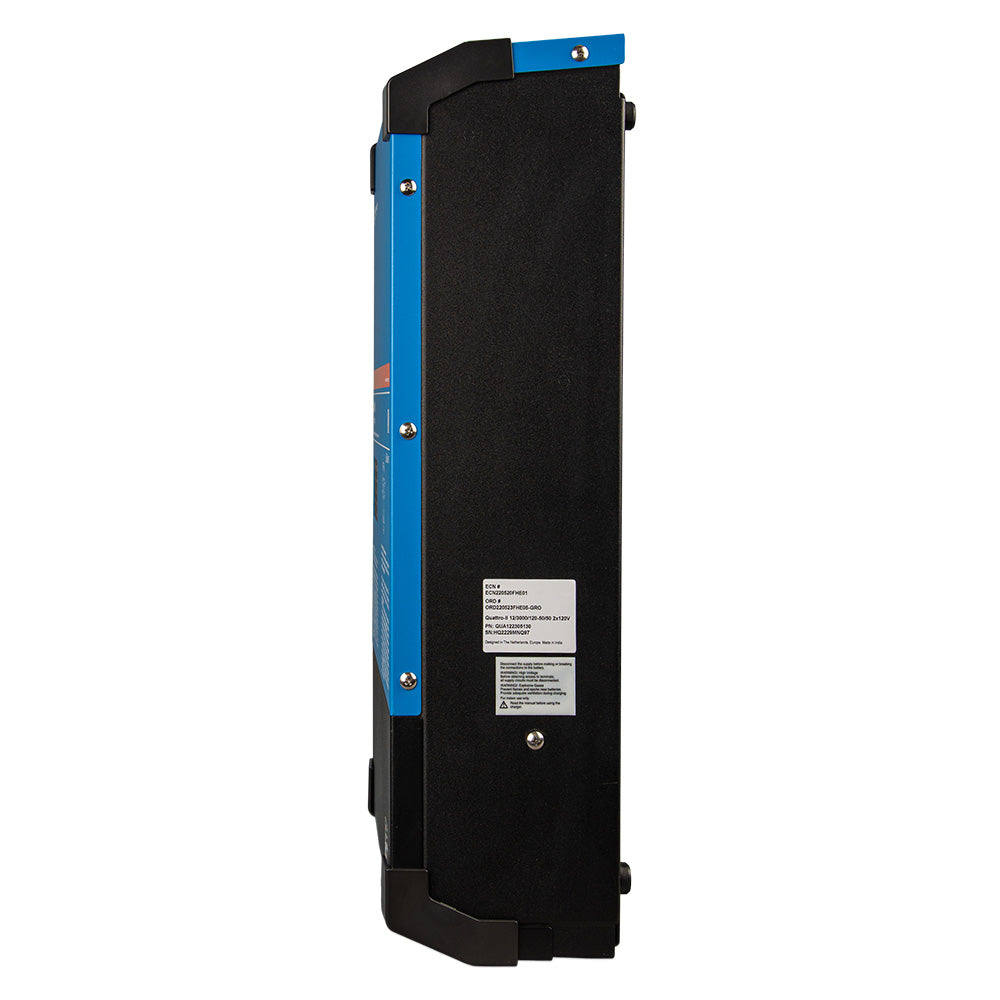

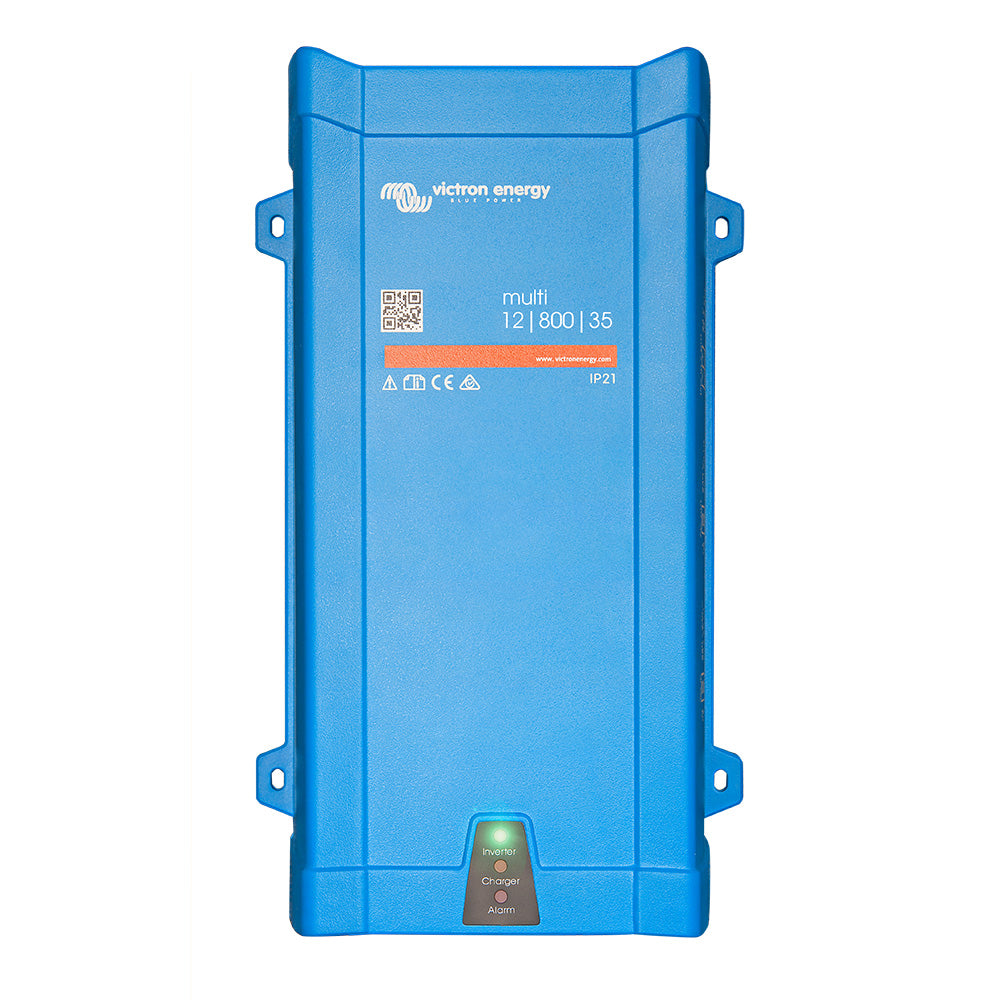

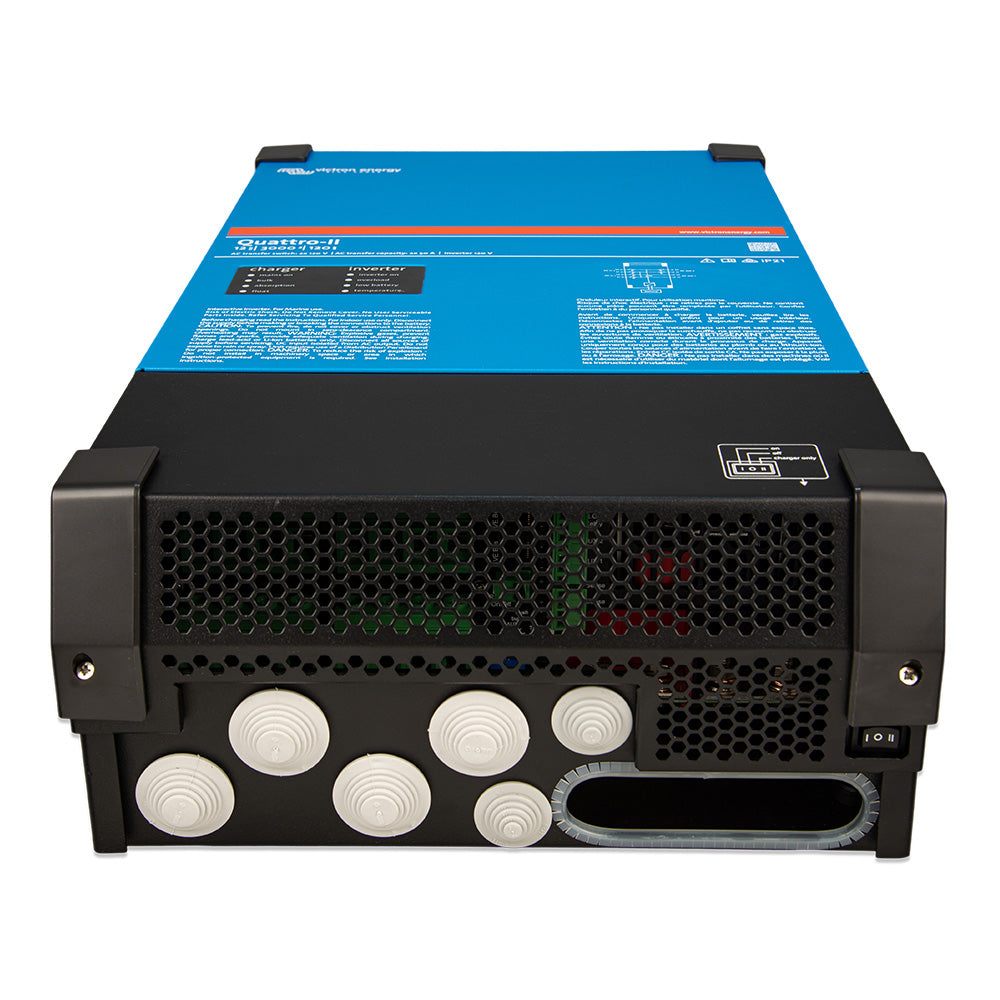

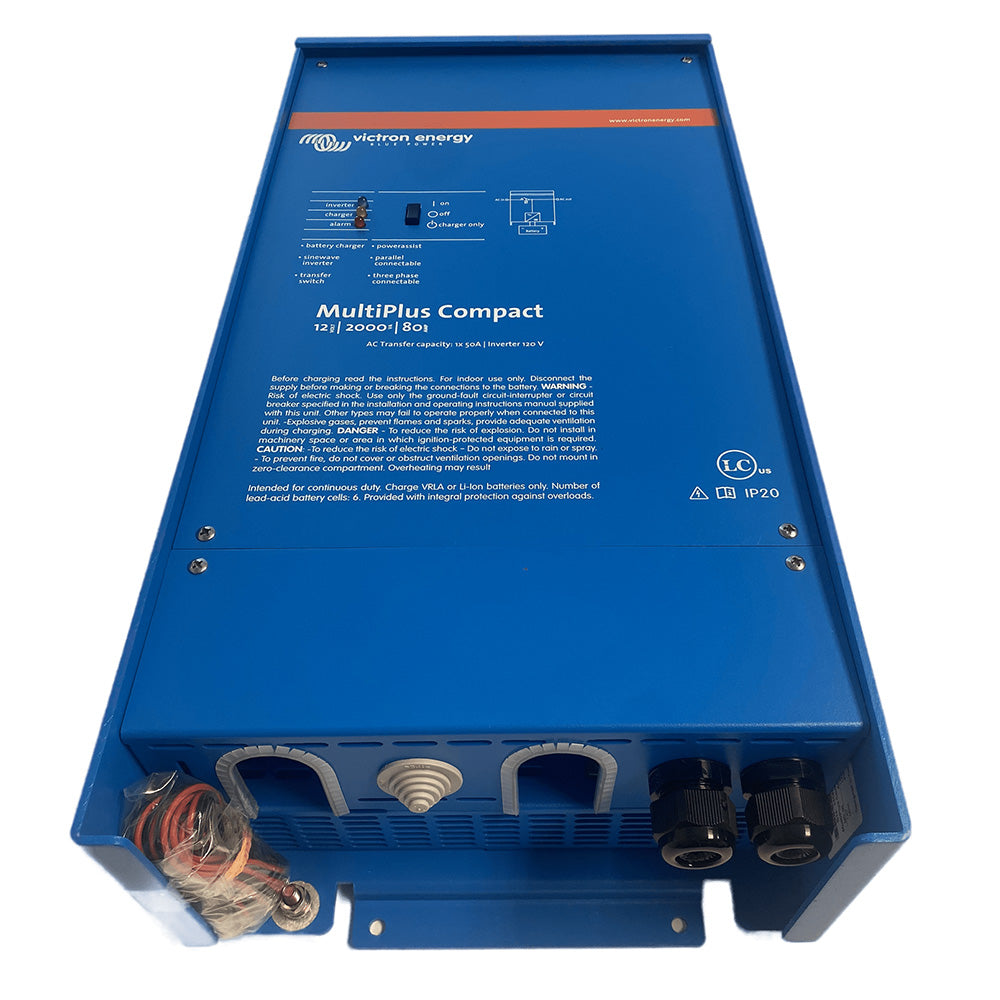

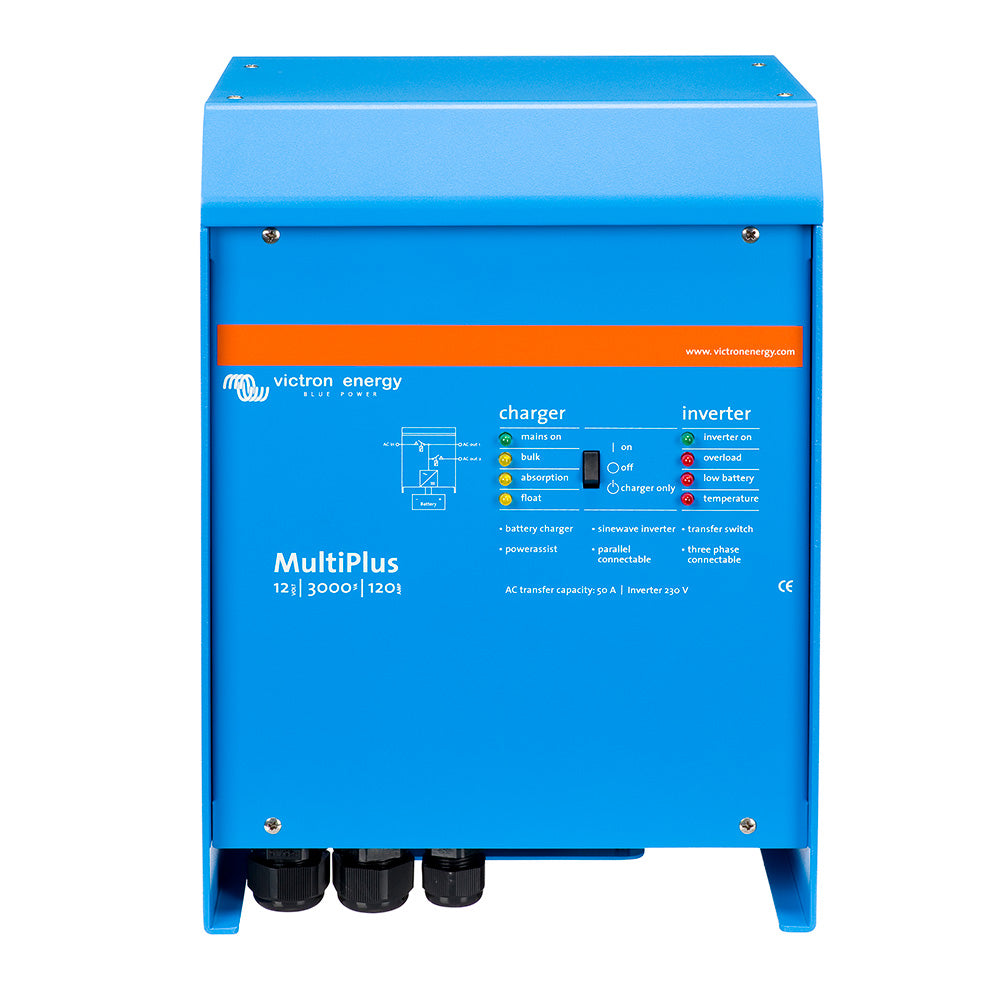

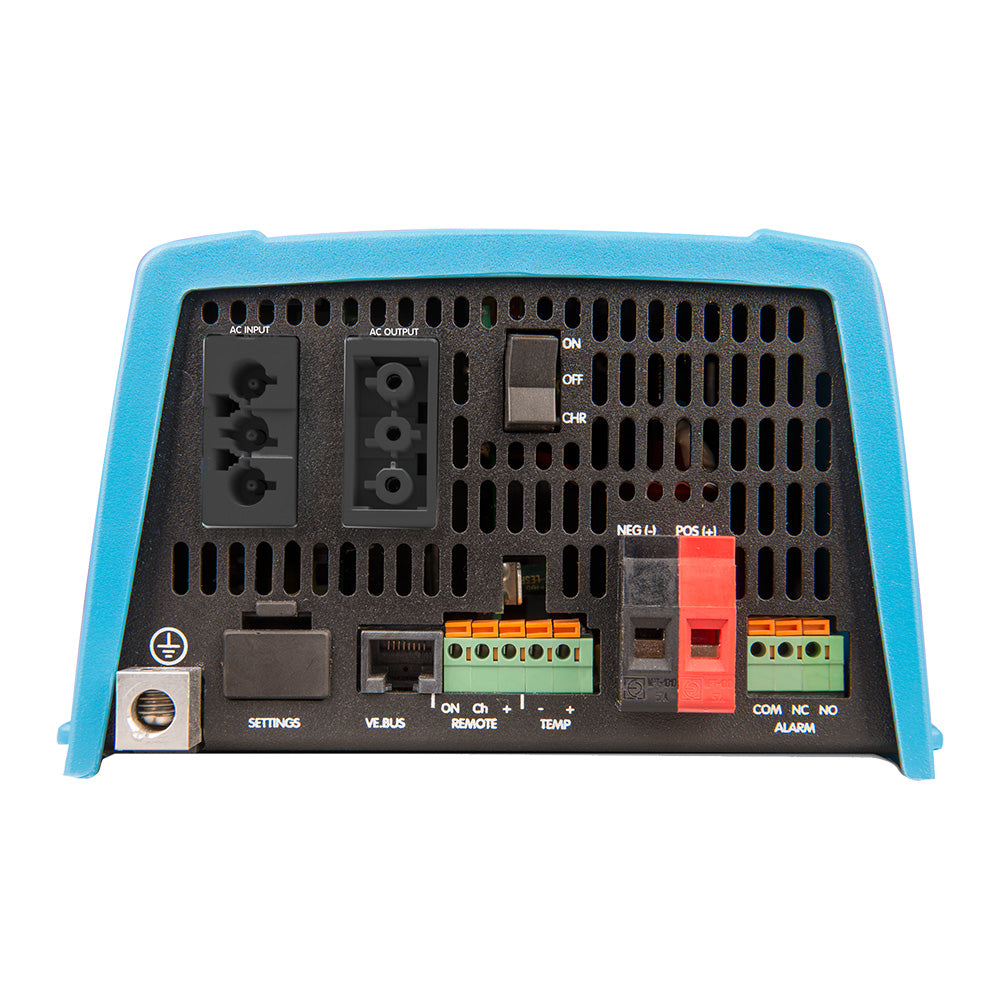

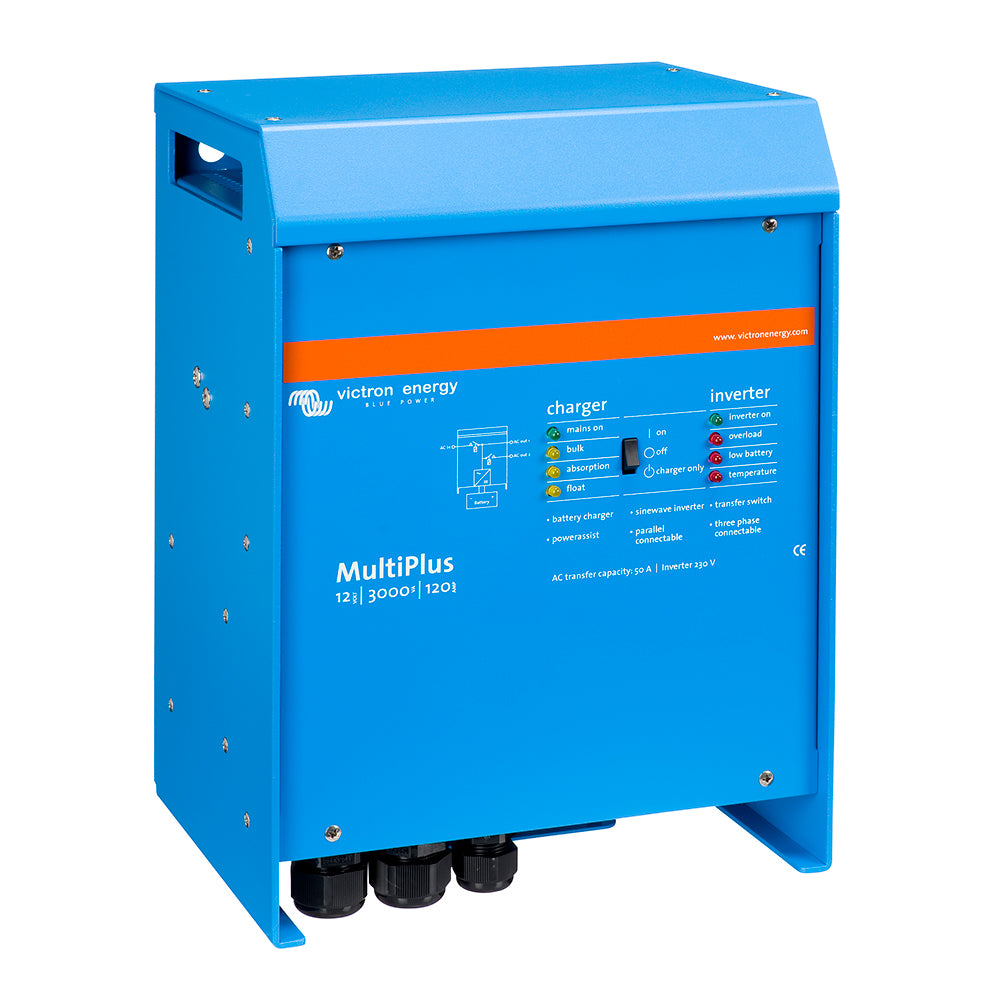

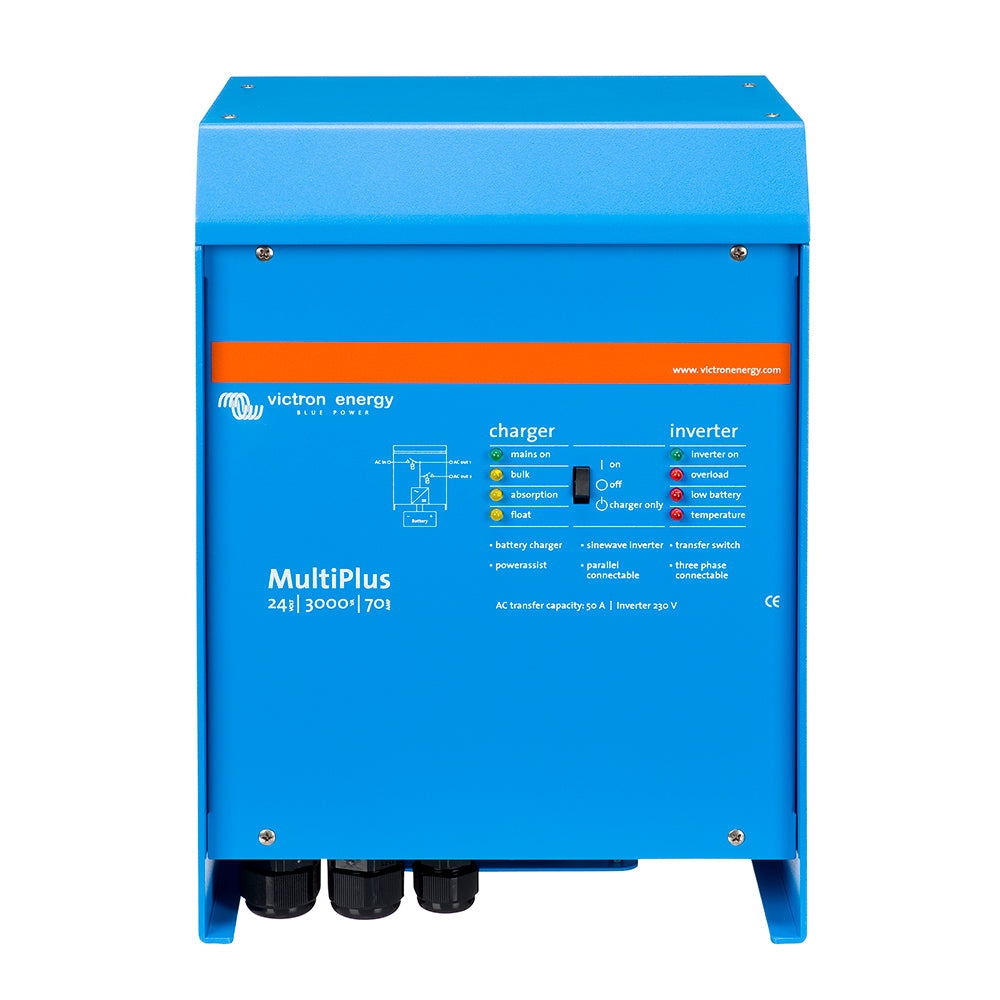

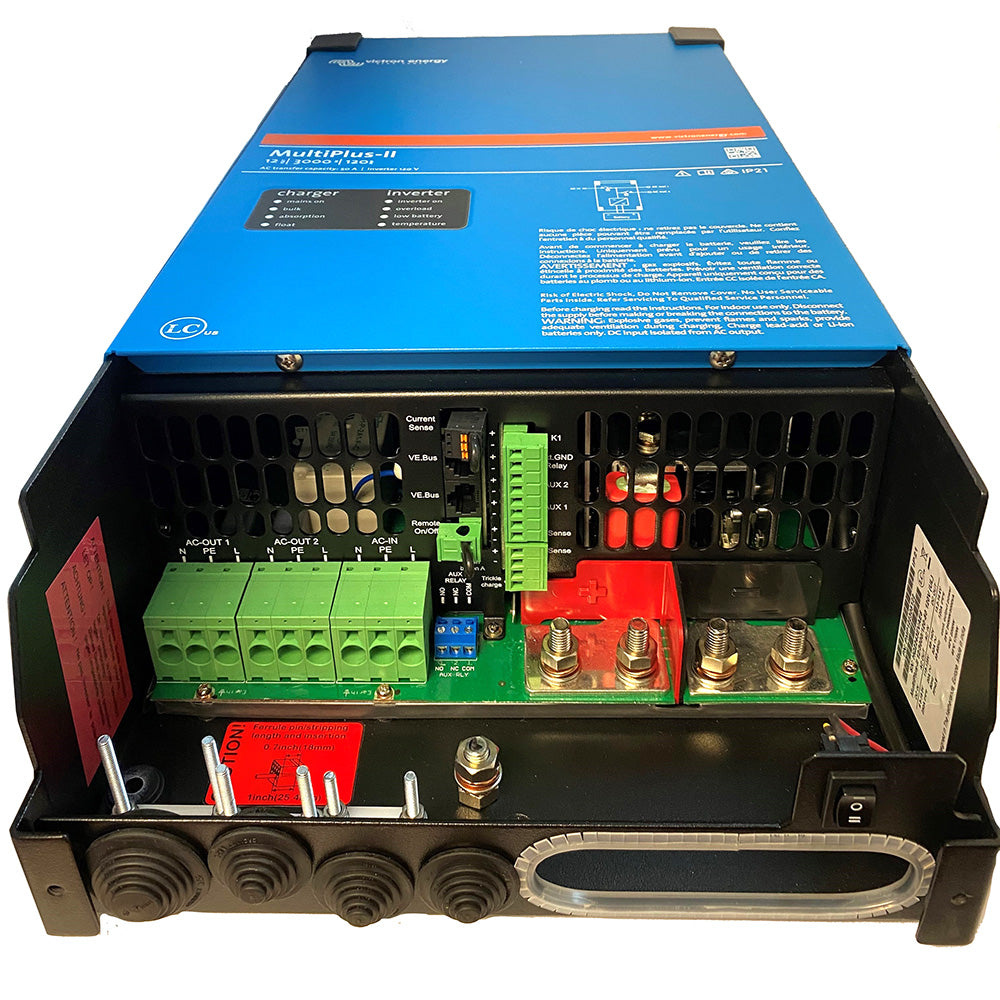

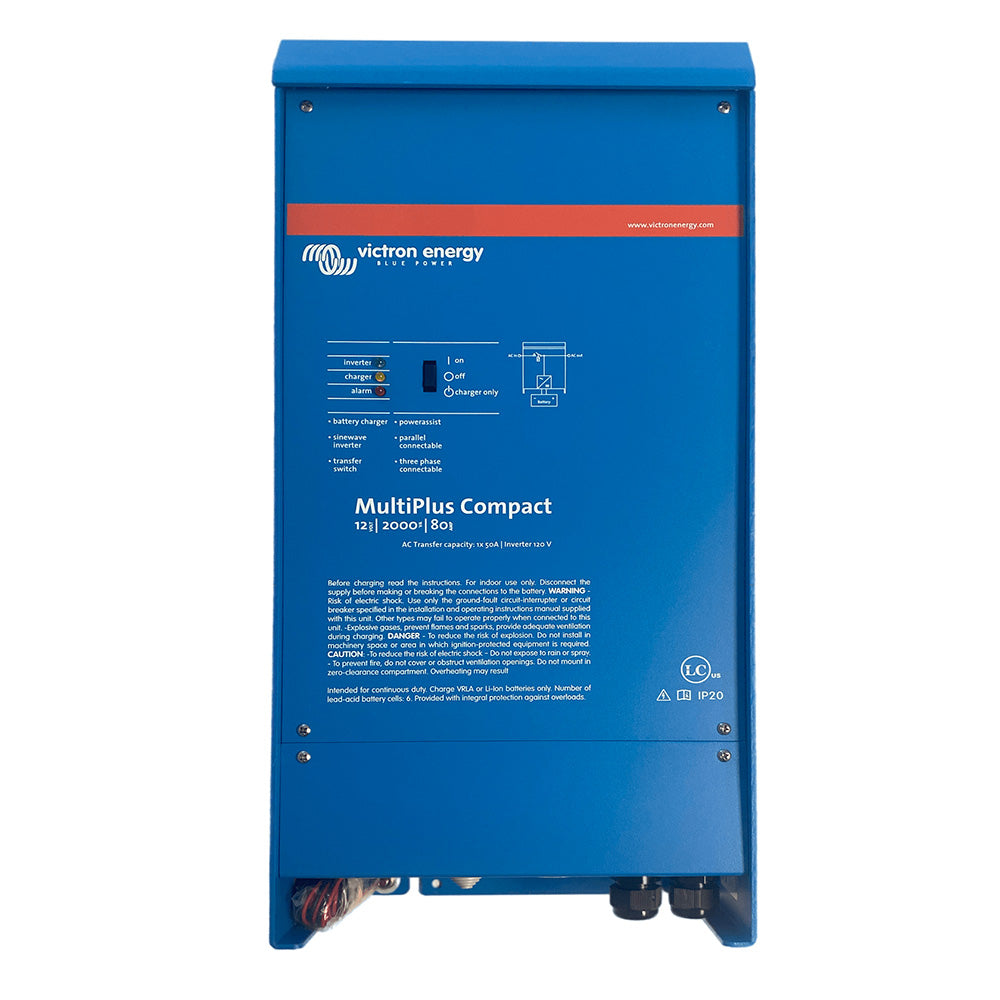

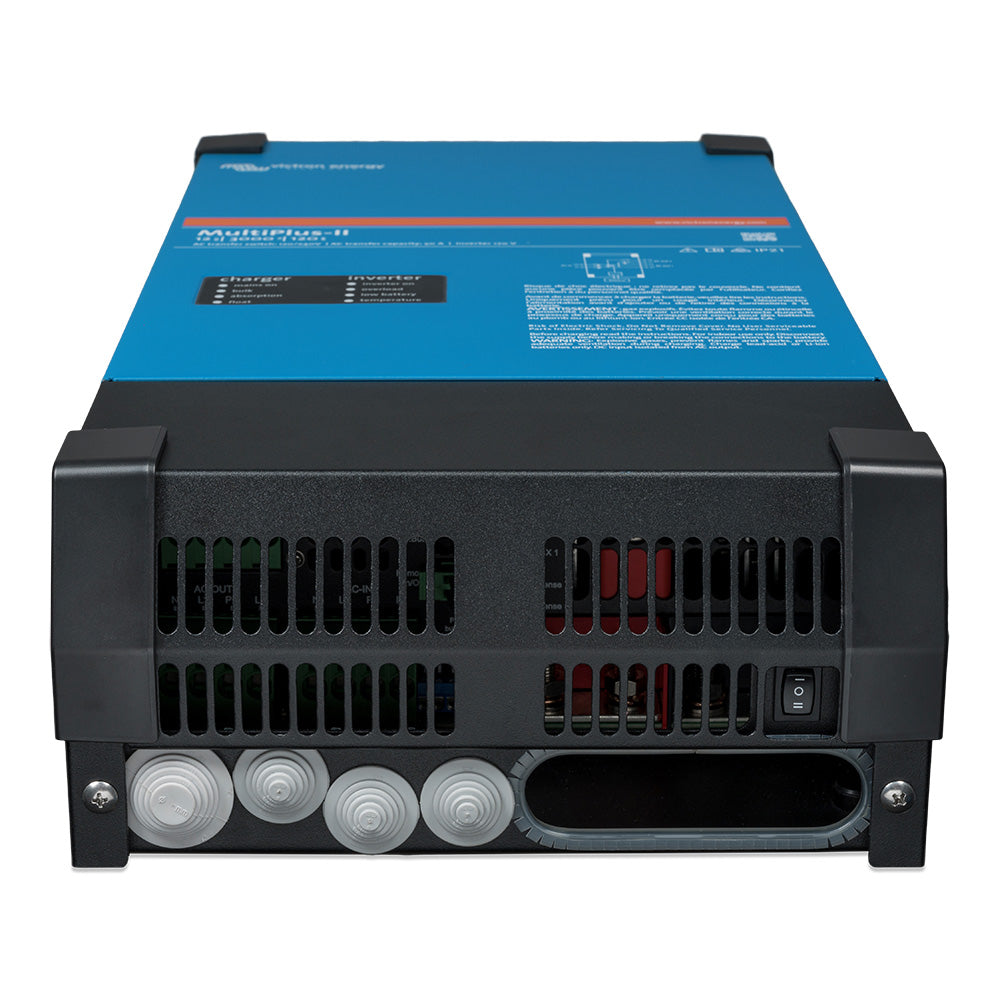

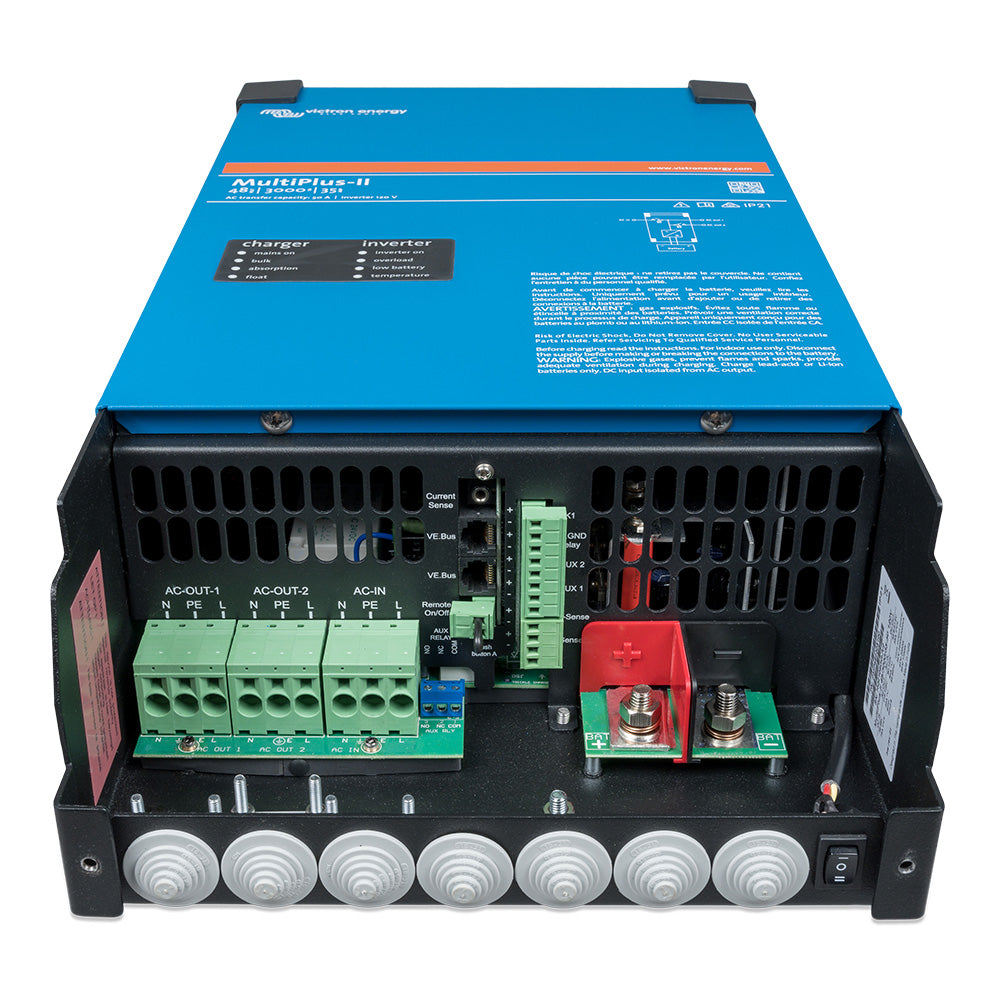

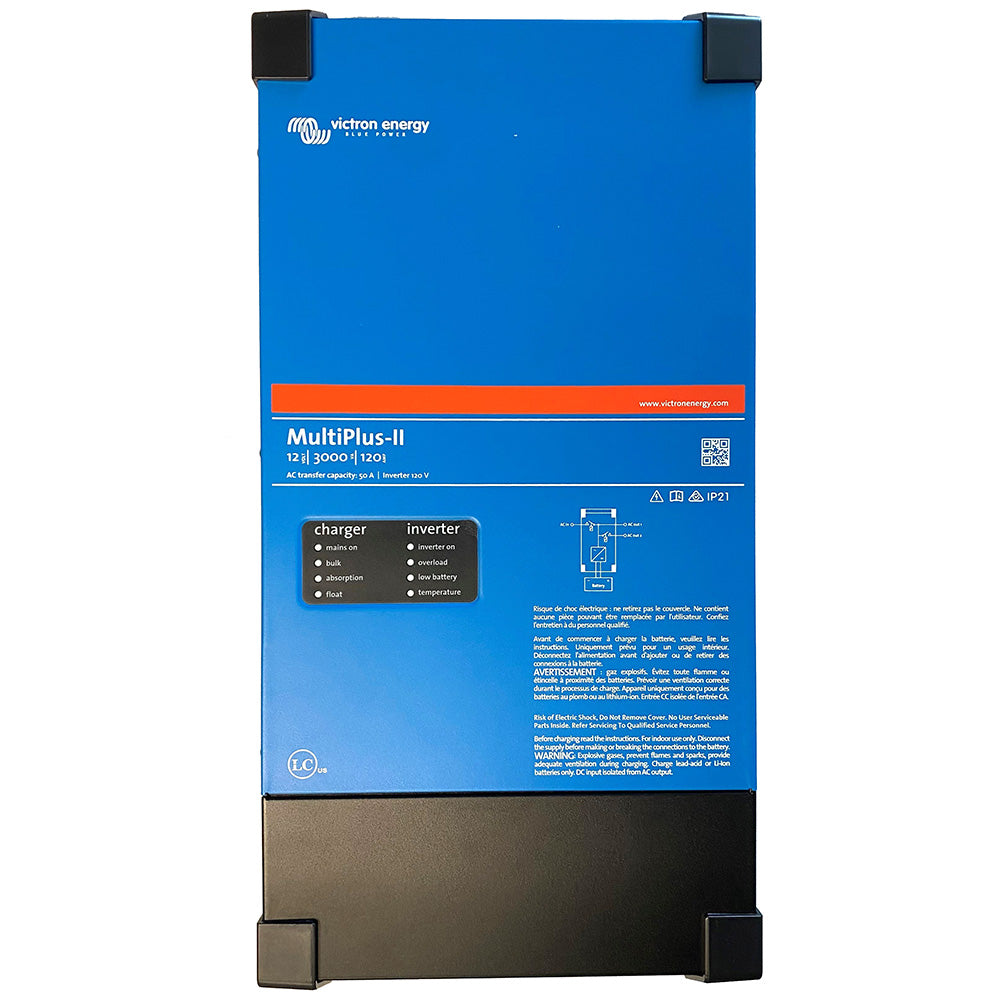

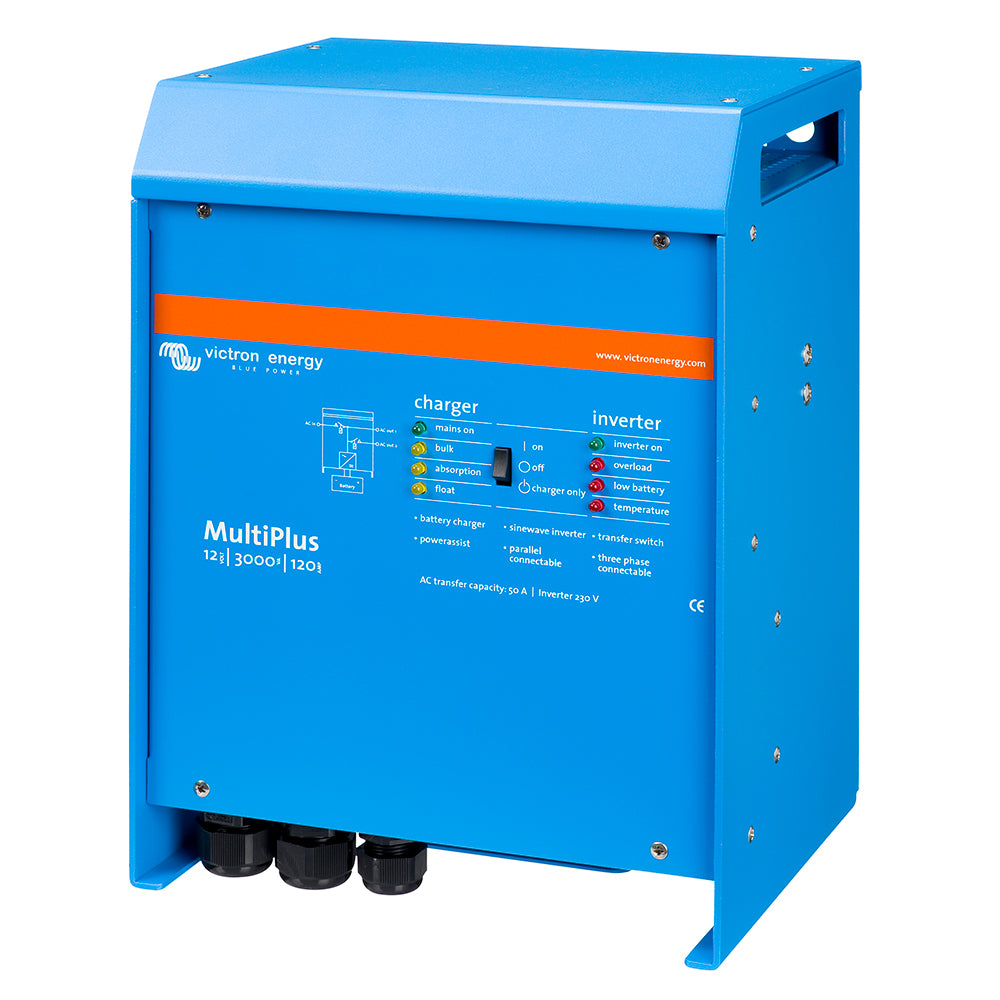

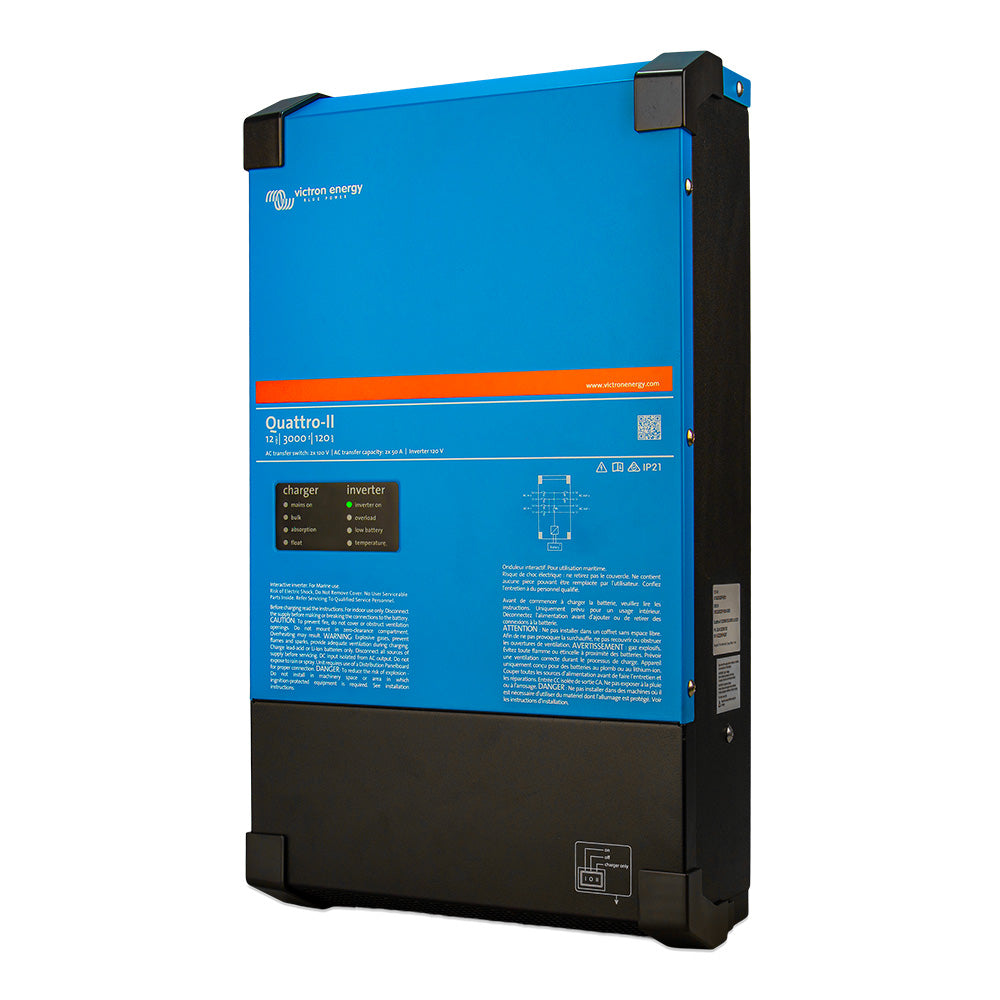

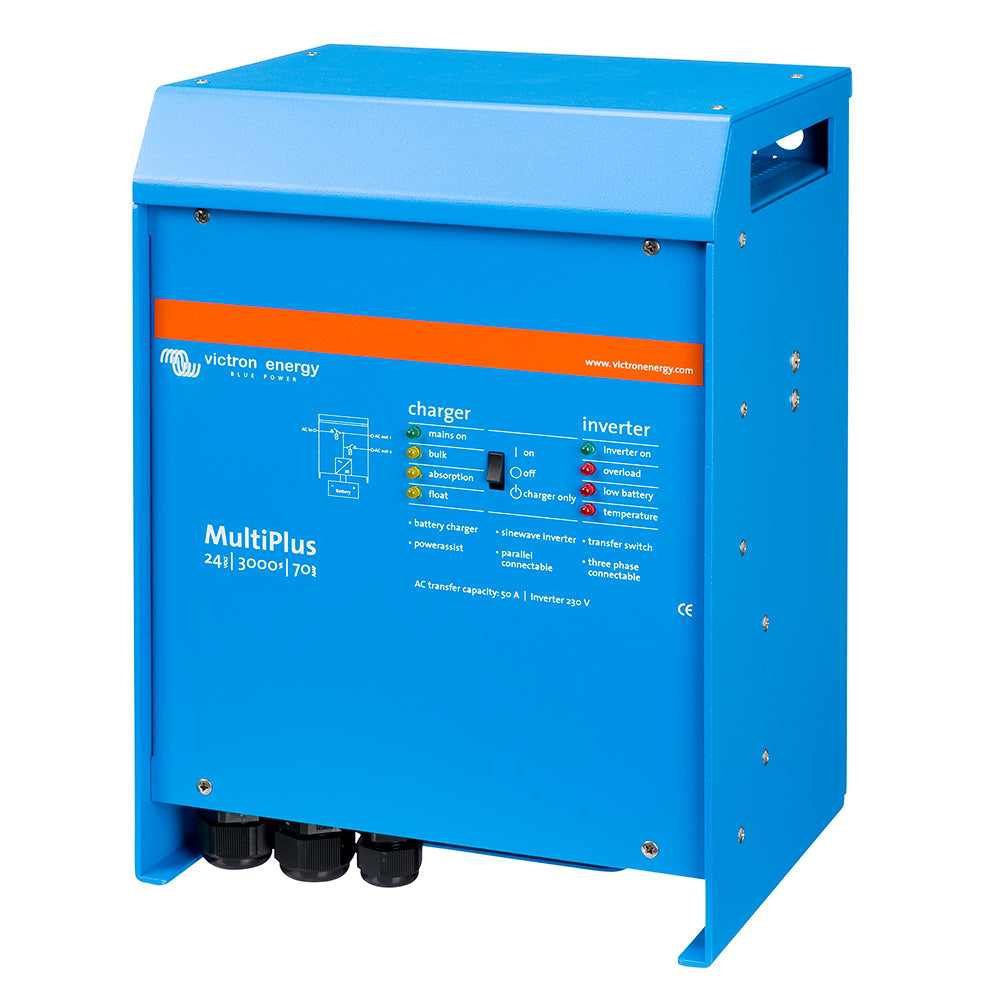

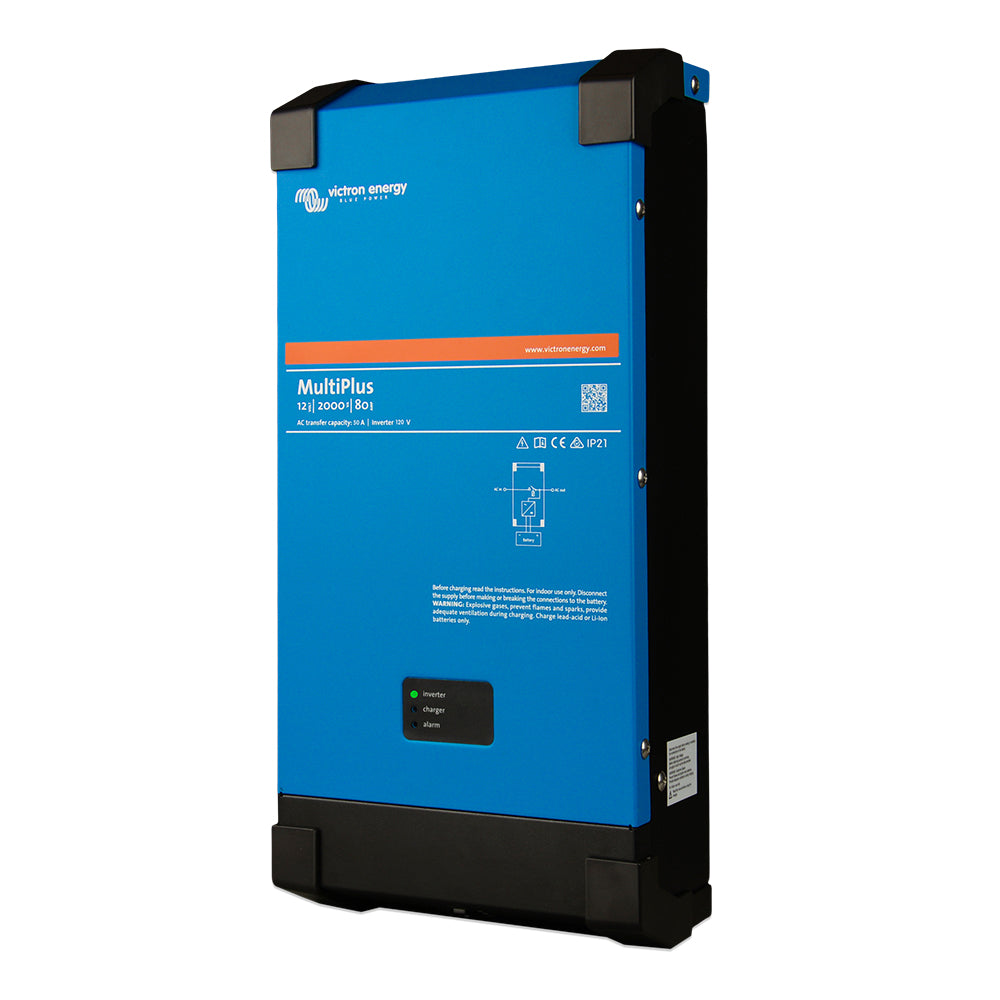

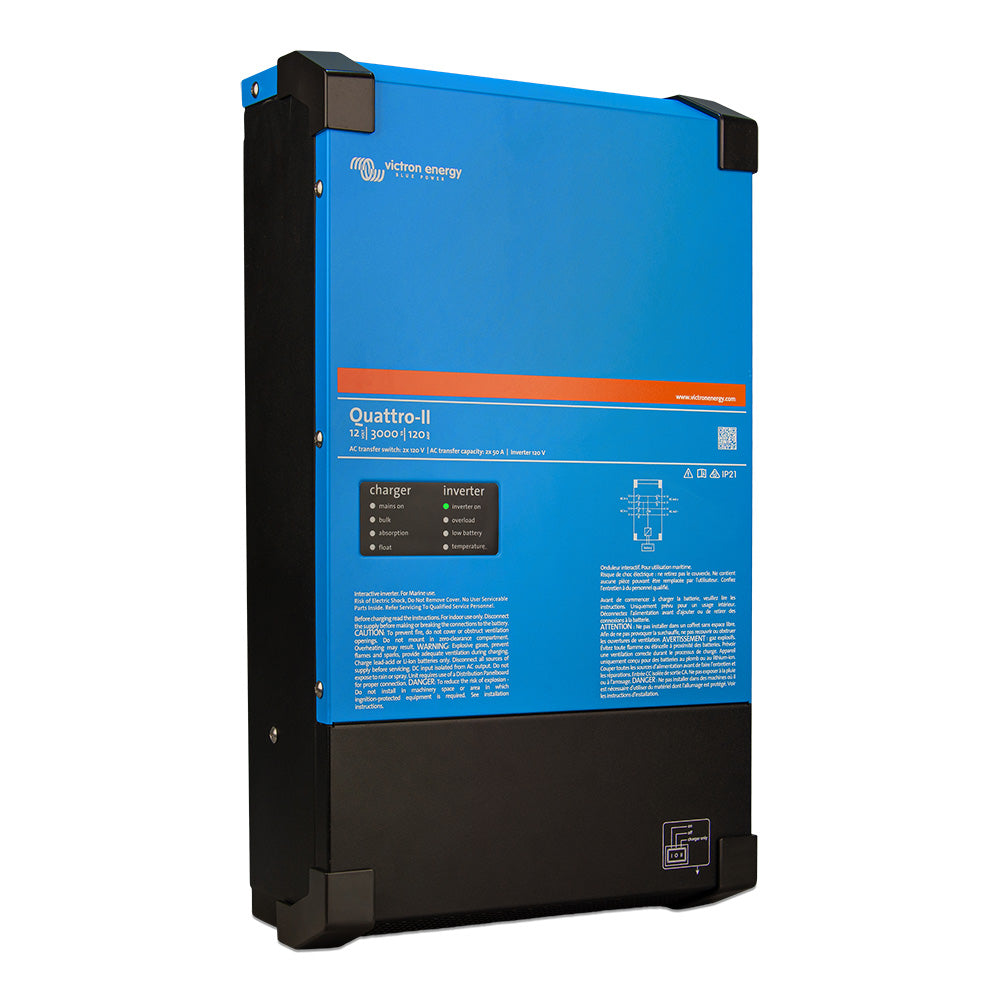

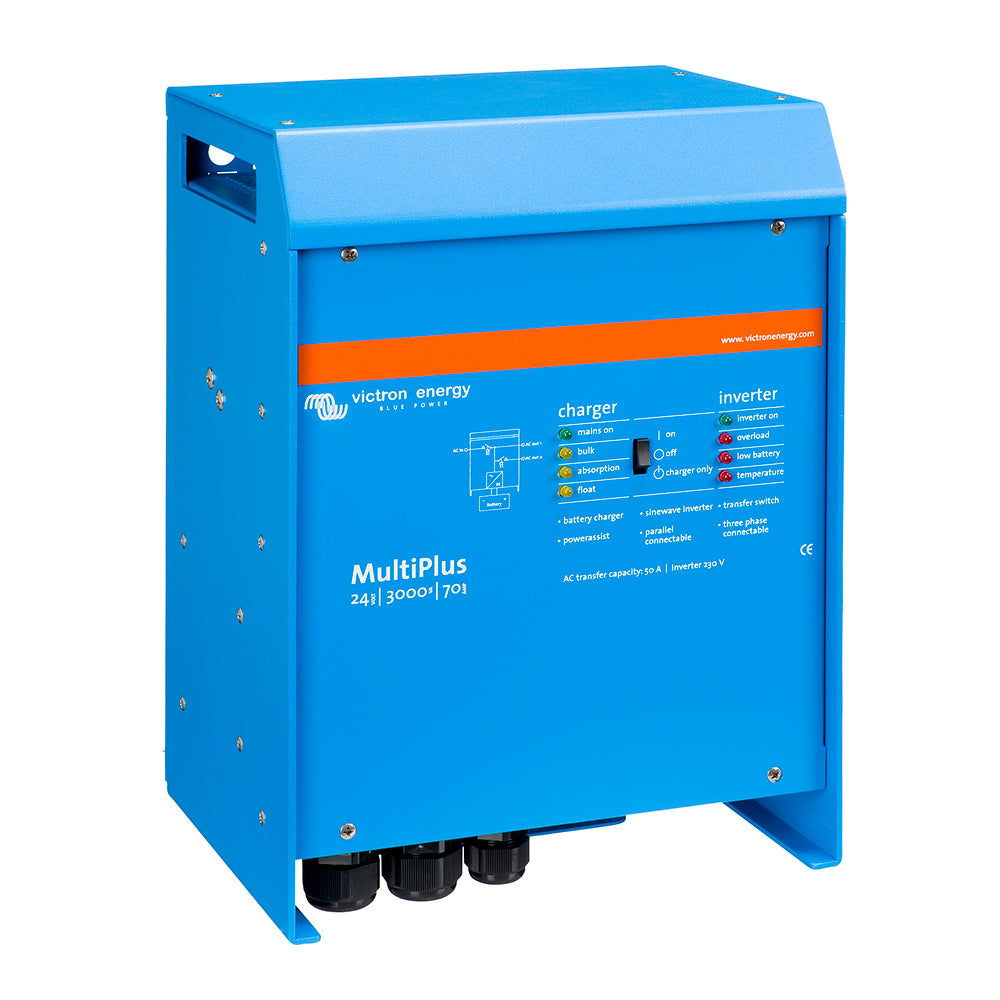

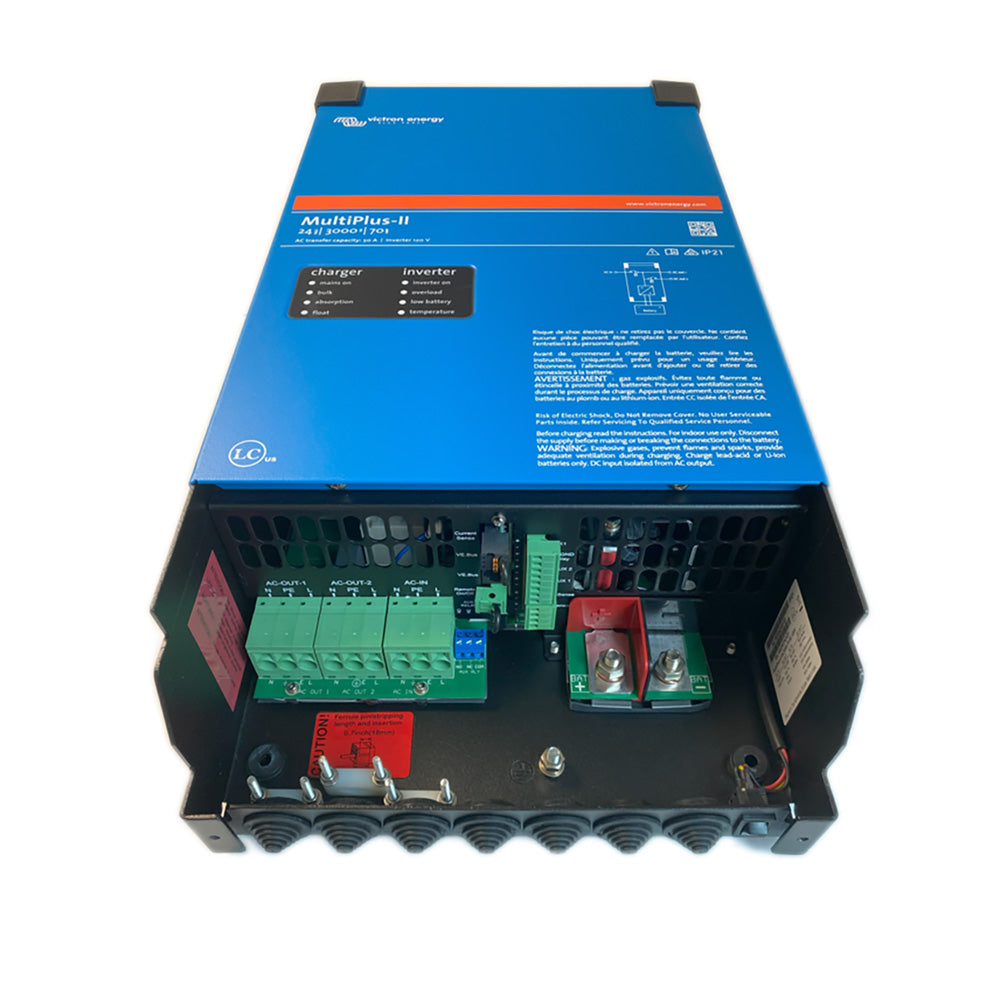

Marine Electric Systems sells and installs Victron Energy equipment in Annapolis, Maryland. We install Victron MultiPlus, Quattro, and EasySolar inverter/chargers — single-unit AC/DC systems with built-in transfer switching, rated up to 15kVA, designed for serious lithium house banks.
The Victron MultiPlus or Quattro is the heart of most lithium refits we do on the Chesapeake. Call (410) 263-0807 to discuss sizing for your boat. We serve Annapolis, Baltimore, the Eastern Shore, Northern Virginia, and the greater Washington DC area.
Related: all Victron products | Victron Inverters | Inverter/Charger installation
Victron Inverter/Chargers FAQ
How do I size an inverter/charger for my boat?
Add up the wattage of the AC loads you expect to run at the same time, then allow extra for startup surge from motors and compressors. Remember the battery bank has to supply that power: on a 12V system, every 1,000 watts of AC load pulls roughly 85–100 amps of DC. That current drives cable size, fusing, and how big a bank you need. Our inverter/charger installation page covers the planning in more detail.
What does the built-in transfer switch do?
When shore power or a generator is connected, the unit passes that AC through to your boat's loads and charges the batteries. When that source drops out, it switches over to inverting from the batteries. The AC side still has to be wired so the inverter can never back-feed the shore inlet and so neutral and ground are handled per ABYC standards. See shore power installation for how this ties into the rest of the AC system.
Can I install an inverter/charger myself?
It's one of the few jobs that touches both high-current DC and 120V/240V AC, which is why it's safety-critical. Cable sizing, fusing, grounding, and AC panel integration all have to meet ABYC E-11. If you'd rather have it done right the first time, contact us to schedule an install anywhere around Annapolis and the Chesapeake Bay.
