The Brain Every Boat Needs: Victron Cerbo GX Explained

If you've ever stood at the helm wondering whether your batteries are actually charged, glanced at your fuel gauge and second-guessed it, or come back to your boat after a weekend away to find a dead house bank — the Victron Cerbo GX was built specifically to solve those problems. It's not just a monitoring device. It's the central nervous system of your entire marine electrical system, and once you've had one, you simply can't imagine going back.

Whether you're a weekend warrior who keeps your boat at the marina or a serious bluewater cruiser living aboard, whole-system visibility changes everything about how you manage your boat's power. Let's break down exactly what the Cerbo GX does, why it matters, and why it belongs on your boat.

What Is the Victron Cerbo GX?

Victron Cerbo GX module installed in a boat's electrical panel with VE.Bus, VE.Direct, and VE.Can connections
The Victron Cerbo GX hub installed aboard — connecting VE.Bus, VE.Direct, VE.Can, and digital inputs from every power component on the vessel.

The Victron Cerbo GX is a GX-series monitoring and control device made by Victron Energy — the gold standard in marine and off-grid power electronics. The Cerbo GX acts as the central hub connecting every power-related component on your vessel: your inverter/charger, solar charge controllers, battery monitors, alternator, generator, shore power connection, tank level sensors, and temperature probes — all talking to one device, all visible on one screen.

It communicates via VE.Bus, VE.Direct, VE.Can, and digital inputs, meaning it's compatible with virtually every Victron product on the market, as well as many third-party sensors. The result is a single, unified view of your entire electrical ecosystem.

Pair it with the optional GX Touch 50 or GX Touch 70 display — a flush-mounted touchscreen — and you have a beautiful, purpose-built dashboard right at your fingertips, as seen on the boat featured in this post.

Whole-System Power Monitoring: See Everything at Once

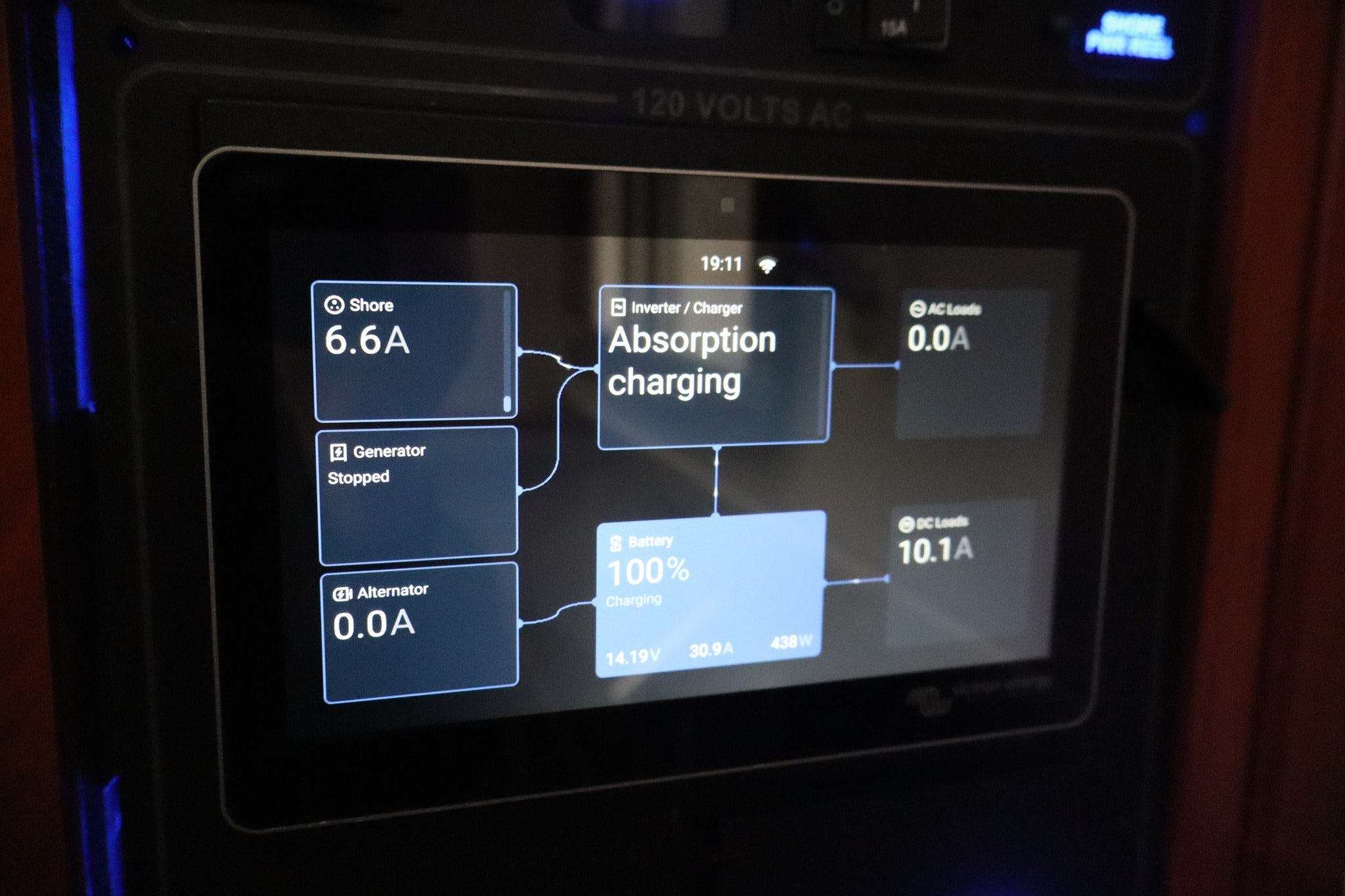

Victron Cerbo GX GX Touch display showing shore power 6.6A, battery 100% at 14.19V 30.9A 438W, absorption charging, and DC loads 10.1A
The Cerbo GX Overview screen in action: shore power input, inverter/charger status, battery at 100%, and real-time AC and DC load monitoring — all on one display.

One of the most compelling features of the Cerbo GX is its ability to show you your entire electrical system at a glance. The Overview screen gives you a live energy flow diagram showing:

Shore Power

When you're plugged into the dock, the Cerbo GX shows your shore power input in real time — in our example, drawing 6.6A from shore. You can see whether the Multiplus inverter/charger is accepting that power, passing it to loads, or using it to charge the batteries. No more guessing whether your cord is actually connected or your shore power breaker tripped overnight.

Generator Monitoring

The generator input is displayed live alongside shore power. Whether your generator is running or stopped, the Cerbo GX tracks its status and amperage contribution. For boats with auto-start generators, the Cerbo can even be configured to automatically start the generator when battery state of charge drops below a threshold — critical for unattended overnight charging or keeping your fridge alive at anchor.

Battery State of Charge

This is where the Cerbo GX truly shines. The battery tile shows real-time state of charge (100% in our example), voltage (14.19V), current (30.9A), and power (438W) — all simultaneously. You can see at a glance whether you're charging, discharging, or absorbing. You'll know your battery health isn't just "fine" — you'll know the exact numbers.

Combined with a Victron SmartShunt or BMV-712, the Cerbo tracks consumed amp-hours and can accurately estimate remaining runtime based on your current draw. This is the difference between guessing and knowing.

DC and AC Loads

The Cerbo GX displays both your AC loads (what you're pulling from the inverter side) and DC loads (direct battery draws — lights, pumps, electronics) separately. In our boat's overview, DC loads were drawing 10.1A while AC loads were at 0.0A. This helps identify parasitic draws, understand your consumption patterns, and make smart decisions about power usage.

Alternator Input with the Arco Zeus

For boaters who charge their batteries while underway, the alternator is often the primary charging source — but it's historically been the hardest to monitor. Enter the Victron Arco Zeus (also known as the Arco DC-DC charger/alternator controller). When connected to the Cerbo GX system, the alternator input appears directly in the overview, showing real-time amperage from your engine's alternator.

The Arco Zeus protects your alternator from overheating by intelligently managing charge current, while simultaneously providing isolated charging to your house bank. The Cerbo GX makes all of that visible — so when you fire up the engines to head out, you can watch those amps flow in and know your batteries are being replenished mile by mile. That's a level of confidence that's hard to put a price on.

Solar Charge Controllers

If you have solar panels aboard — and more and more boaters do — the Cerbo GX integrates with Victron MPPT solar charge controllers via VE.Direct to display solar yield, current output, and daily totals. Watch your panels come alive as the sun rises and track exactly how much free energy you're harvesting each day.

Tank Level Monitoring: Always Know What's Aboard

Victron GX Touch display showing three tank levels: fuel at 63% (33/53 gal), fresh water tank 1 at 99% (70/70 gal), fresh water tank 2 at 99% (40/40 gal)
Real-time tank monitoring on the GX Touch: fuel at 63% (33/53 gal), and both freshwater tanks topped off at 99%. No more lifting floor boards to check your water supply.

The Cerbo GX supports up to three tank level sensors, and it makes a huge practical difference. As shown on this vessel's GX Touch display, three tanks are monitored simultaneously:

  • Fuel tank: 63% full — 33 out of 53 gallons remaining
  • Water tank 1: 99% full — 70 out of 70 gallons
  • Water tank 2: 99% full — 40 out of 40 gallons

Each tank is shown with a visual fill bar and precise percentage and gallon readout. For a cruising family, knowing your water supply without opening lockers and peering into tanks is an everyday quality-of-life upgrade. For passage-makers, it's mission-critical information for voyage planning.

Tank inputs are configurable — label them fuel, fresh water, waste water, or any custom name — so your display always makes sense at a glance.

Temperature Monitoring: Freezer, Fridge, Engine Bay

Victron GX Touch Environment tab showing freezer at 76F, fridge at 77F, and engine bay at 77F with temperature bar graphs
The Environment tab monitors three temperature zones simultaneously: Freezer (76°F), Fridge (77°F), and Engine Bay (77°F) — giving early warning of any heat or cooling issues.

The Environment tab on the Cerbo GX display takes things further with multi-zone temperature monitoring. Using Victron-compatible temperature sensors, this boat monitors three separate zones:

  • Freezer: 76°F
  • Fridge: 77°F
  • Engine Bay: 77°F

For liveaboards and extended cruisers, knowing your freezer is actually cold (or catching when it isn't) can save hundreds of dollars in lost provisions. Engine bay temperature monitoring provides an early warning system for heat buildup when running in hot weather or heavy seas. And all of it is visible on the same screen as your tanks and power data.

VRM: Monitor Your Boat From Anywhere in the World

If the onboard display is impressive, the Victron Remote Monitoring (VRM) portal is downright game-changing. When the Cerbo GX is connected to the internet — via WiFi, ethernet, or a cellular data modem — it automatically syncs all of your boat's data to Victron's cloud platform at vrm.victronenergy.com.

From any web browser or the free VRM app on your phone, you can:

  • Check your battery state of charge from home, the office, or across an ocean
  • Review historical charge and discharge graphs going back months
  • Set up alerts and alarms — get a text or email if your battery drops below 50%, if a tank runs low, or if a temperature threshold is exceeded
  • Remotely access and adjust settings on your Victron inverter/charger
  • Verify that shore power is connected after leaving the marina
  • Monitor solar production and track energy trends over time

This feature alone is worth the investment for any boat owner who worries about their vessel while away. The peace of mind from seeing "Battery: 100%, Shore Power: Connected" on your phone before you go to bed is immeasurable.

Easy Integration: The Victron Ecosystem

One of the reasons the Cerbo GX is so powerful is that it sits at the center of the Victron ecosystem — a carefully integrated family of products that includes:

  • Multiplus II inverter/chargers — the heart of your AC system
  • SmartSolar MPPT charge controllers — for solar integration
  • SmartShunt / BMV-712 — precision battery monitoring
  • Arco Zeus / Orion DC-DC chargers — alternator and DC-DC charging
  • GX Touch 50/70 displays — touchscreen dashboard

Every one of these products communicates seamlessly with the Cerbo GX, and the whole system is configurable through the VictronConnect app. You can customize what's displayed, set alarm thresholds, name your tanks and inputs, and fine-tune your charging parameters — all without needing a professional to reprogram anything.

Who Should Install a Victron Cerbo GX?

The short answer: any boater who takes their vessel seriously.

If you're a weekend cruiser who keeps your boat at a marina, the Cerbo GX with VRM means you can check on your boat from your couch on Sunday night and know it's ready for next weekend. You'll catch a failing charger, a tripped breaker, or a low battery before it turns into a frustrating surprise when you arrive at the dock Friday evening.

If you're a liveaboard or extended cruiser, whole-system monitoring isn't a luxury — it's a necessity. Managing energy at anchor, optimizing solar and alternator charging, knowing your water supply, and monitoring your fridge temperature are daily tasks that the Cerbo GX makes effortless rather than laborious.

If you're upgrading your boat's electrical system — adding lithium batteries, solar, or a new inverter/charger — the Cerbo GX should be part of that project from day one. It ties the whole system together and makes every other component smarter and more useful.

The Bottom Line

The Victron Cerbo GX is the single most impactful piece of marine electronics you can add to your boat's power system. It brings together shore power, generator, battery, solar, alternator (via the Arco Zeus), tanks, and temperatures into one coherent, real-time picture — and then puts that picture in your pocket via VRM no matter where in the world you are.

Boating is supposed to be about enjoyment, adventure, and relaxation — not anxiety about whether your batteries are charged or your fuel tank is accurate. The Cerbo GX handles that worry for you, so you can focus on what matters: time on the water.
